Premiumline PL31 Glass Balustrade Profile for Side Fixing

U TYPE SIDE ELEVATION PL31 MODEL one of our rich profile
options, is suitable for different architectures stands out with its
reliable holding strength and optimalist design.

  • High strength of complete profile use and connector pins
    make your assembling easy.
  • Complies with worldwide safety and building regulations.
  • Uses the safety wedge system for easy glass installation.
  • All colour range possible with customize.
  • Wedge system allows +/- 20 glass alignemont.

Thanks to the tie / neck system accessory much more strong
against impacts.
With side contact design gives advantage of slab place mont to
the edges when assembling.
Model helps you when edges no space enough or isolation goes
to the whole area.

ALUSMART SERIES
Technical Specifications
Security Load
1.7 kN
Line Load
500 Lbs (225 N)
Pressure
200 Lbs (890 N)
Proven Pressure
1.9 kN
Alignment Capacity
+/-2*

Premiumline PL31 Side Fixed Glass Balustrade Channel

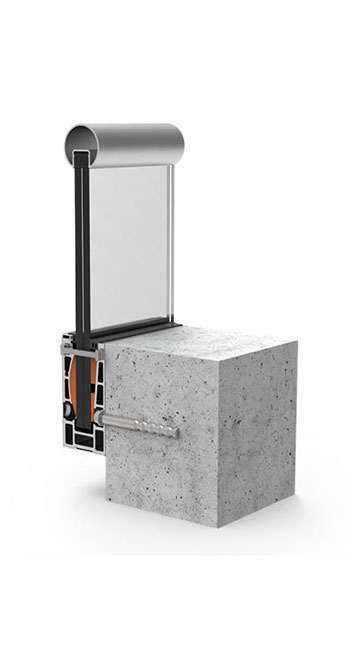

PL31 is the U type side elevation channel of the Premiumline range. Instead of standing on the floor, the U profile is bolted to the face of the slab, so the glass runs past the edge and the floor stays usable right up to it. The glass is held with safety wedges and rubber gaskets that allow ±2° of alignment. PL31 is rated at 1.7 kN security load, the higher of the two Premiumline ratings. Akos manufactures it in Konya, Turkey, where it has produced aluminium railing and glazing systems since 2006.

PL31 Technical Specifications

ItemPL31 data
ProfileU type side elevation channel, finished aluminium (aluminum)
MountingBolted to the face of the slab with horizontal anchors
CoverOuter cover profile tapped on over the fixings, as shown in the assembly guide
Glass fixingSafety wedges and rubber gaskets, ±2° glass alignment
GlassLaminated safety glass per project, 12+12 SGP in hospitality kits
Security load1.7 kN
Pressure200 lbs (890 N), proven pressure 1.9 kN
Impact strengthTie and neck accessory
FinishesAnodised, stainless look or RAL powder coating
Dimensions and assemblyTechnical drawing matched to your slab edge, 12-step PL31 assembly guide

Where PL31 Works Best

PL31 is the choice when every centimetre of floor counts or when the slab surface should not be drilled.

  • Narrow balconies on apartment blocks, where a floor channel would take walking width.
  • Terraces with waterproofing or insulation over the whole slab.
  • Gallery, mezzanine and landing edges in offices and homes.
  • Residential towers and hotels that need the 1.7 kN rating.

PL31 Compared with PL30, PL10 and PL20

Premiumline PL30 is also side fixed and also 1.7 kN, but it is a Y profile with an extra side cap made to line up with cladding and insulation. Choose PL30 when a thick insulation layer or cladding meets the railing, and PL31 when you want a compact U channel bolted directly to the slab face.

Premiumline PL10 and Premiumline PL20 fix on top of the slab and are rated 1.2 kN. PL10 carries the Giordano test certificate, PL20 hides its fixings under a cap. See the Premiumline series for the full comparison.

PL31 Glass Balustrade Prices

PL31 kitIndicative price
Commercial and offices, 10+10 or 12+12, PVB or SGP190-320 EUR per linear metre
Hospitality and public areas, 12+12 SGP on the side-mounted channel260-420 EUR per linear metre
Structure only, channel, cover, accessories and handrail85-160 EUR per linear metre

Indicative prices, ex works Konya, excluding VAT, installation and transport. A 20 m run of commercial PL31 kit costs about 3,800 to 6,400 EUR ex works. Residential balconies with 10+10 PVB glass are priced per project from your drawing, and local installation typically adds 45-90 EUR per metre.

How to Order PL31

  1. Send plans and a slab edge section with its thickness and any insulation or cladding.
  2. We return a drawing with anchor positions, glass sizes and corner details, plus an itemised quote.
  3. Samples are available, with no minimum order for standard systems.
  4. Production takes 15-25 working days after drawing approval.
  5. Kits travel packed for export, 5-10 days by truck to western Europe.

What is the Premiumline PL31 used for?

PL31 fixes frameless glass to the face of a concrete slab. Use it when the top of the slab has no room for a channel, or insulation covers the whole surface. The floor stays usable right up to the edge.

Is PL31 the same as PL30?

No. Both are side fixed and rated 1.7 kN, but PL31 is a compact U channel bolted straight to the slab face, while PL30 is a Y profile with an extra cap designed to line up with cladding and insulation.

How is the PL31 installed?

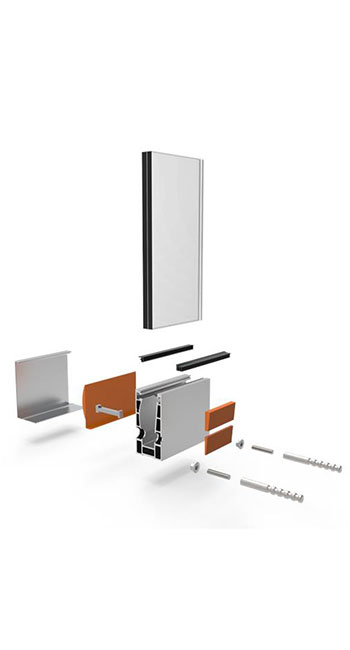

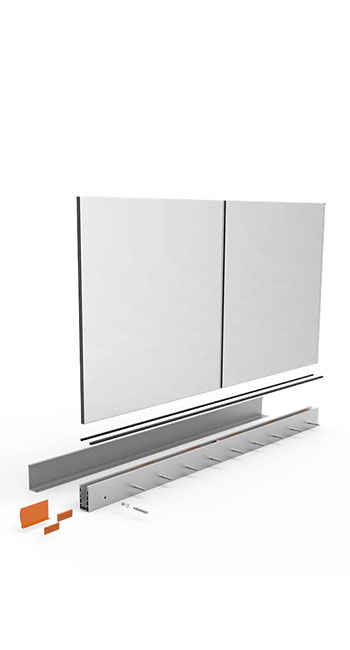

The 12-step guide covers drilling the profile and the slab face, setting the anchors, bolting the channel and fitting the outer cover, then gaskets and setting pieces, lowering the glass, driving the wedges and pressing in the top gasket.

How much does a PL31 glass balustrade cost?

Commercial PL31 kits cost 190-320 EUR per linear metre and hospitality kits with 12+12 SGP glass 260-420 EUR, ex works Konya and excluding VAT. The structure alone is 85-160 EUR per metre.

Send us the slab edge detail and we will price PL31 with a drawing and anchor layout. Request a PL31 quote or the catalogue.

Completed Projects

Easy Installation

Transparent security for modern spaces

With our Glass Base systems, we provide transparent security in your modern living spaces. With its minimalist design and durable structure, we offer a solution that is both aesthetic and functional. While adding elegance to your home or workplace, we also prioritize safety.

High durability and stylish design

Our Glass Base systems attract attention with their high durability and stylish design. Our profiles, which are resistant to different wind loads, offer long-lasting use and add value to your space with their modern design. We add difference to your projects with this system that combines security and aesthetics.

A combination of safety and aesthetics

With our Glass Base systems, we offer an aesthetic appearance without compromising security. Thanks to our innovative clamping technology, we fix your glass securely. With its stylish and modern design, we fit perfectly into all kinds of architectural projects.

Resistant to strong winds

Our profiles are designed to withstand high winds. This way, it can be used in a variety of applications and offers a long-term solution for your construction project.

High quality

Our profiles are either completely invisible or so aesthetically beautiful that you will be delighted with them. You will immediately notice this difference and question why you chose another product.

OFFER FORM

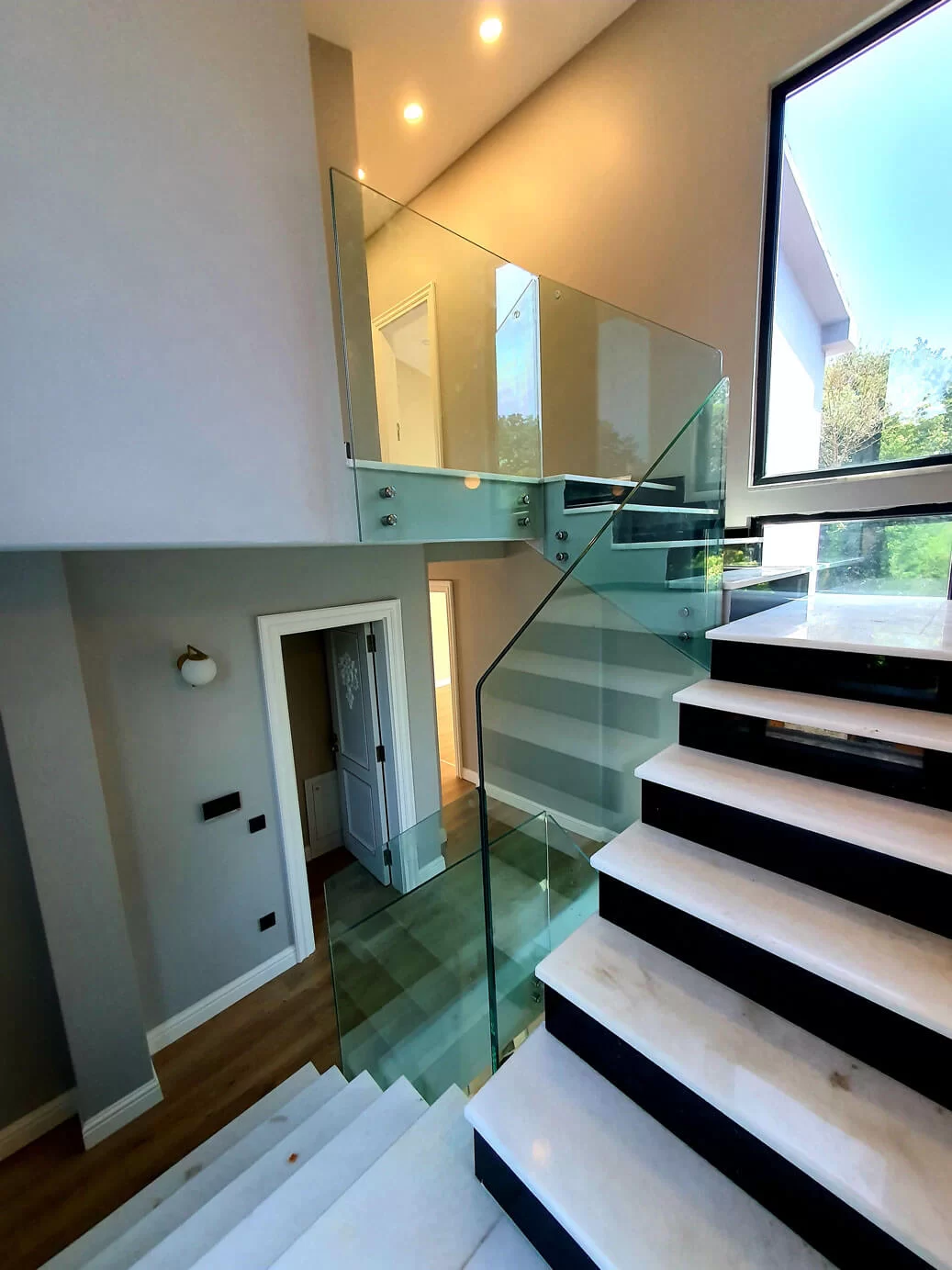

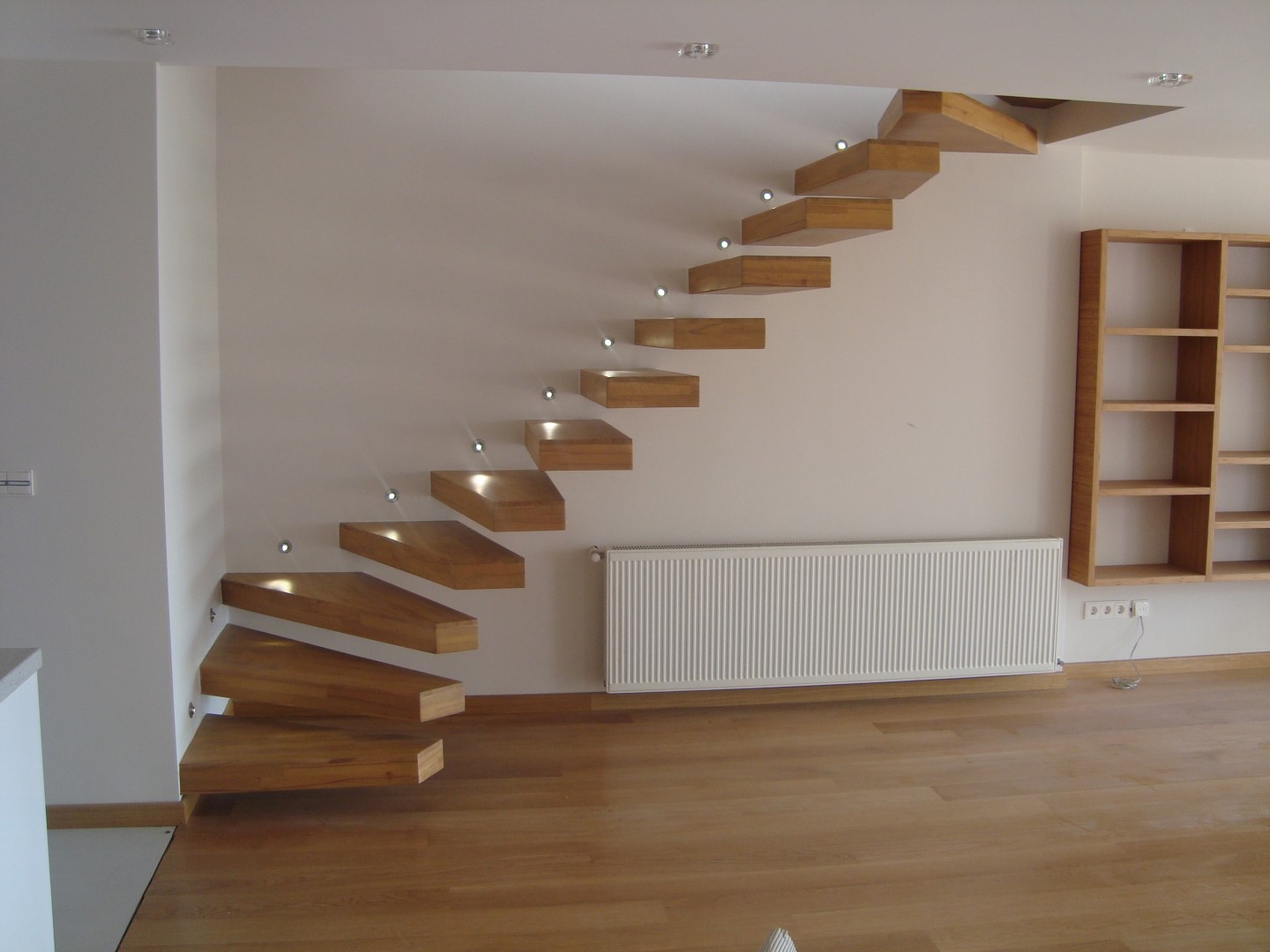

Floating wooden staircase without a railingGlass balustrade on a staircase
