What defines a high-performance aluminium garden gate for long‑term use?

Aluminium garden gate systems perform best when structural alloys, certified coatings, and engineered hardware are specified for 15+ years of outdoor duty. At Akos System, we manufacture pedestrian gates from architectural-grade extrusions—primarily EN AW‑6063‑T6/T66 and EN AW‑6060‑T66—for optimal strength-to-weight and corrosion resistance. Typical posts are 60×60, 80×80, or 100×100 mm with 2.0–3.0 mm wall thickness, while frames use 50×30 or 60×30 mm profiles to resist racking. Polyester powder coating is applied to EN 12206, 60–80 μm film thickness, with Qualicoat Class 2 available for harsher UV zones. Stainless steel hardware (AISI 304 as standard, AISI 316 for coastal) prevents galvanic corrosion; hinges are cycle‑tested to 100,000+ openings and rated 80–150 kg per leaf depending on model.

Field performance is determined by wind exposure, infill type, and fixings. Slatted designs such as Dakota and Nice present 25–45% open area and achieve higher wind tolerance, while privacy panels (Nevada) require larger posts or shorter spans in exposed sites. For most gardens, a 0.9–1.2 m single swing leaf at 1.2–1.8 m height weighs 18–40 kg depending on infill, with 10–15 mm ground clearance for drainage. We design to typical pedestrian gate impact scenarios (approx. 0.5 kN at latch height) and advise site‑specific checks for EN 1991‑1‑4 wind pressures above 0.8 kPa. Marine packages add chromate‑free pre‑treatment and fastener upgrades, validated with 1,000 h neutral salt spray (ISO 9227) and 1,000 h QUV‑B.

Glass variants use 8–10 mm tempered or 4+4 mm laminated tempered panels with polished edges, retained by EPDM gaskets to EN 12365 and mechanical security clips. All gates are produced under ISO 9001:2015 quality management in our Konya facility, ensuring traceable batches, consistent tolerances (±0.5 mm on cut lengths), and repeatable assembly for distributors and project teams.

Which aluminium garden gate configurations and designs fit your project?

Choose your aluminium garden gate by access type, privacy, and architectural style to align performance with aesthetics. Single swing is the most common configuration for 900–1200 mm clear openings, while double swing suits 1400–2400 mm utility access points. Self‑closing hinges and magnetic latches support pool safety concepts, and Euro‑profile mortise locks integrate with master‑key systems in hospitality and commercial schemes. Access control (RFID/keypad/intercom) routes through concealed grommets in posts; we recommend 16–18 AWG low‑voltage cable and drip loops for weather protection.

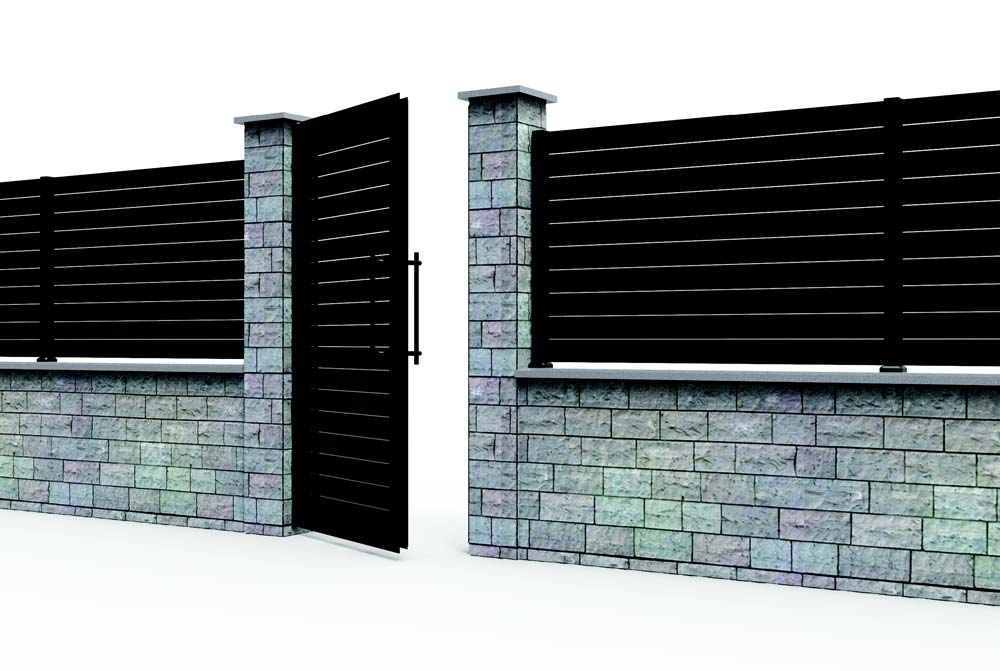

Akos System offers coordinated styles that match garden fencing and driveway gates for a unified perimeter. Select Dakota (vertical slats) for airflow around villas and landscaped walkways, or Nevada (horizontal boards) for privacy at residential and mixed‑use developments. Nice delivers minimalist narrow slats ideal for corporate campuses, while Arvada provides a slimline look where lightweight installation is a priority. For design‑led façades, Leaf, Star, and Sun laser‑cut panels use 3–4 mm EN AW‑5754 sheet with reinforced frames, creating patterned light and controlled opacity—popular in boutique hotels and cultural venues. Florida frames hold tempered or laminated glass for modern hospitality entries and pool garden paths. All designs are available in the full RAL palette, textured or smooth, plus wood‑effect finishes.

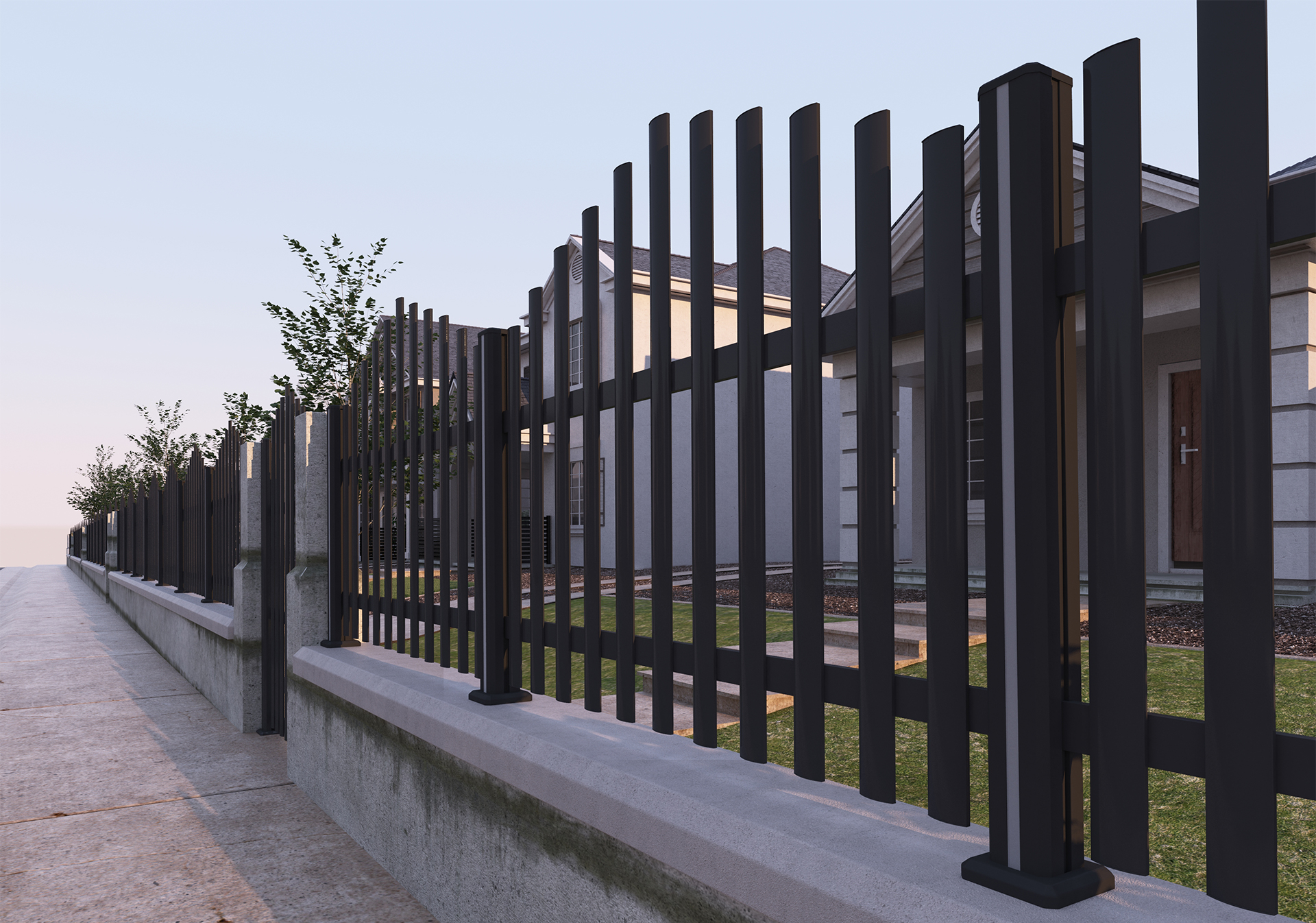

• Dakota – Vertical slats, high airflow; villas and landscape projects in temperate or windy zones.

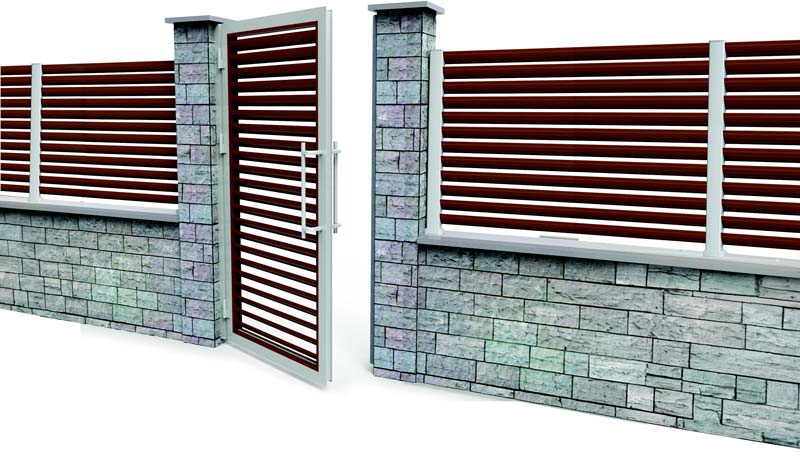

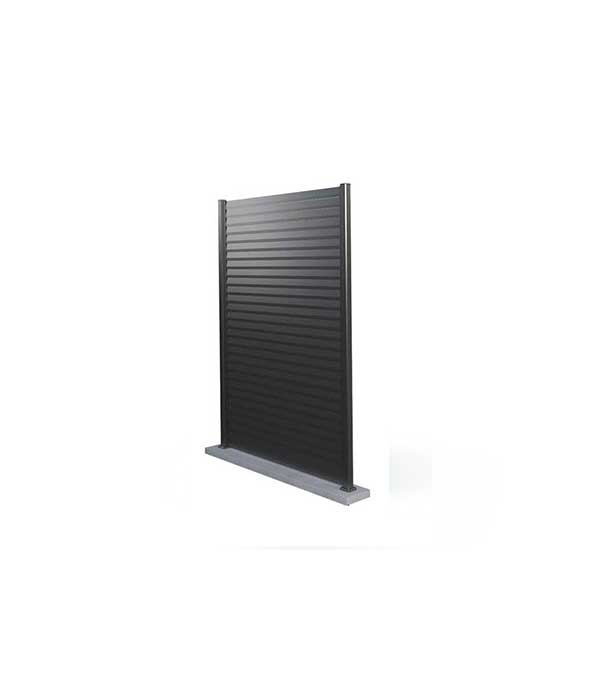

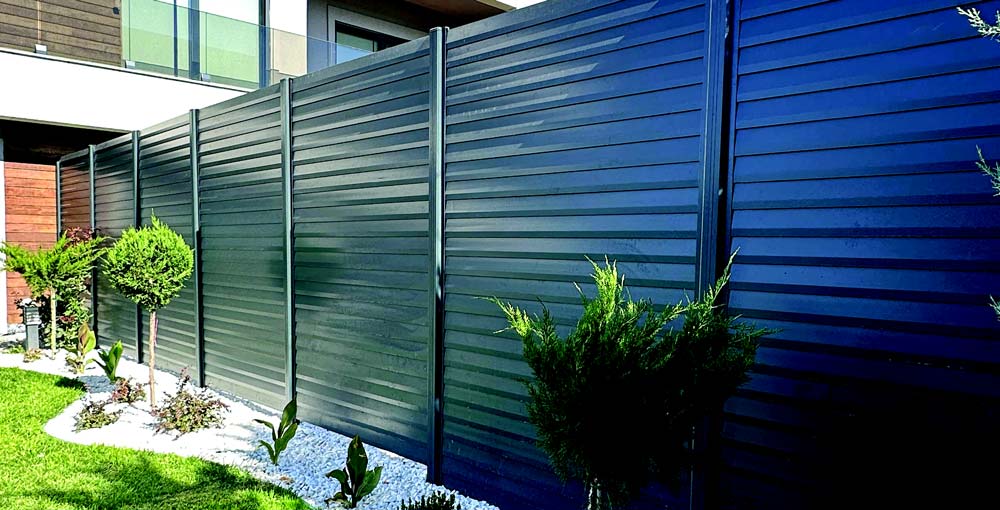

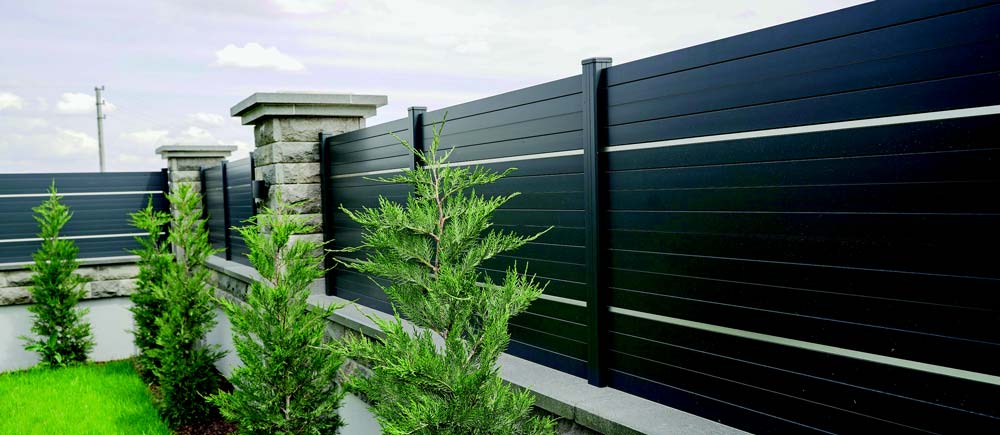

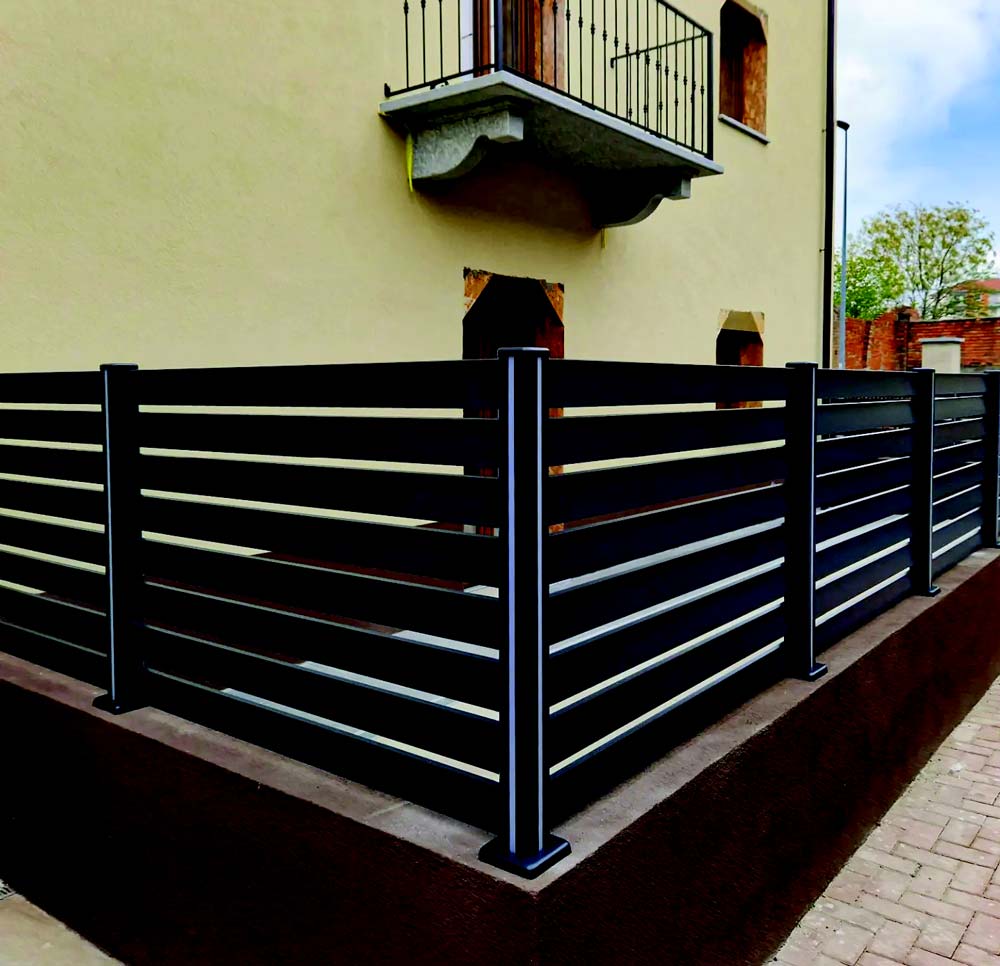

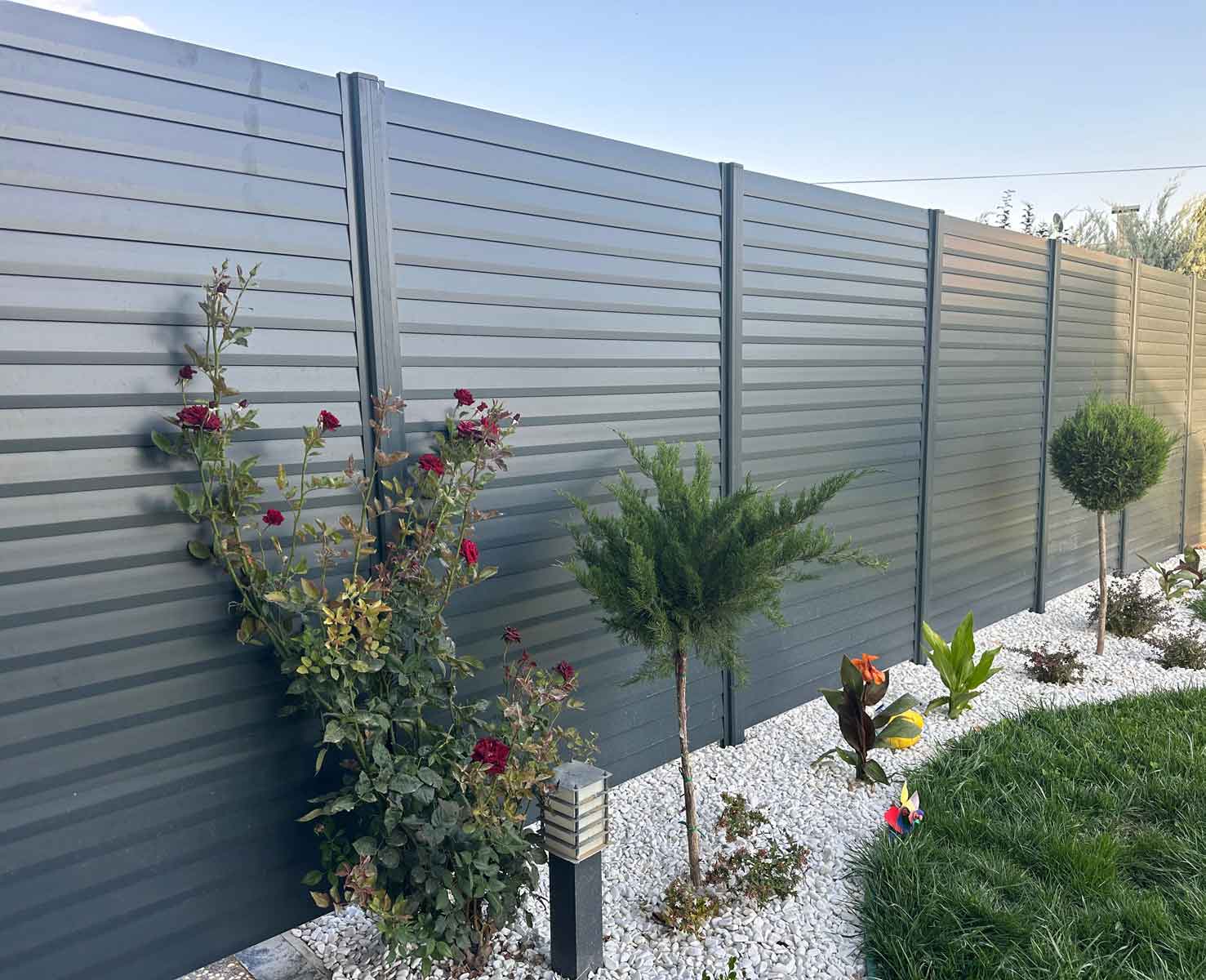

• Nevada – Horizontal privacy boards; residential courtyards and commercial back‑of‑house screens.
• Nice – Minimal slats; corporate campuses and contemporary townhouses.
• Arvada – Slim frame; fast installs and value‑engineered refurbishments.
• Leaf / Star / Sun – Laser‑cut motifs; hospitality and themed gardens needing visual impact.

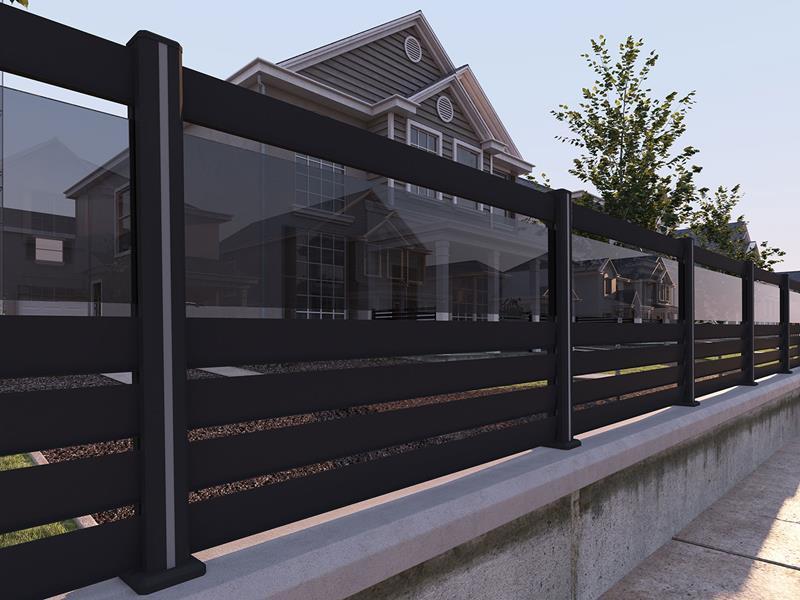

• Florida – Framed glass; hotels and premium residences seeking transparency.

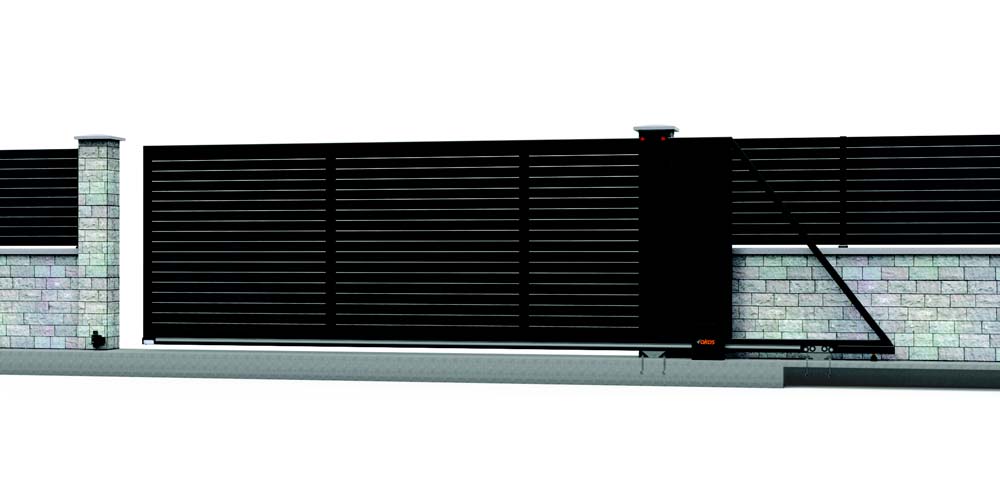

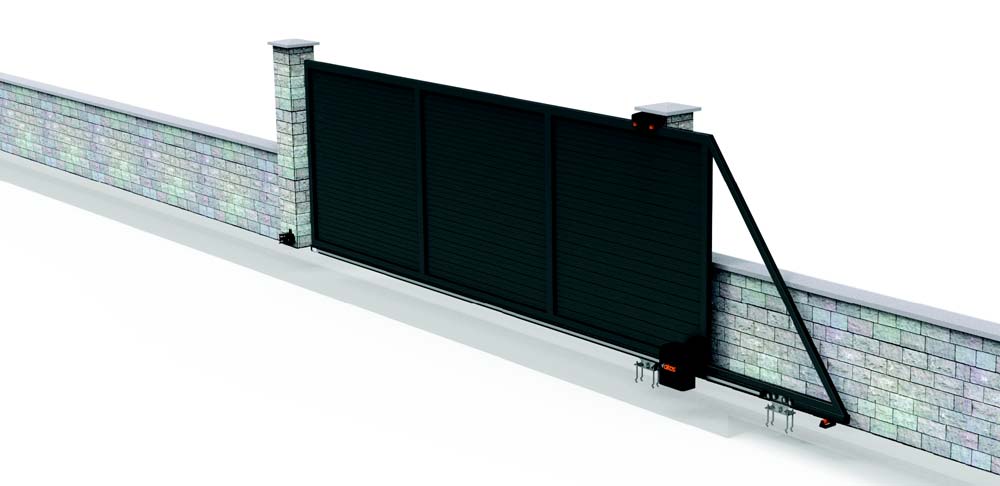

For driveways, coordinate pedestrian gates with our Aludoor Entry and Aludoor Auto ranges to maintain sightlines and RAL uniformity across the site boundary. Typical garden heights are 1200–1800 mm; slat gaps can be tuned from 5–15 mm for partial screening or closed for full privacy. Anti‑tamper fasteners, drop‑bolts, and security escutcheons enhance perimeter protection where required.

How to specify and install an aluminium garden gate with confidence

Specification starts with site conditions, wind exposure, and pedestrian flow to size posts, hinges, and latching correctly. Confirm the structural substrate: set‑in posts typically require 250×250×600 mm C25/30 concrete footings for 1.6 m gates, while base‑plated posts fix to cured slabs with four M12 anchors (≥70 mm embedment). Plan clear opening (usually 900–1100 mm), swing direction, latch height (900–1100 mm), and ground slope; allow 10–20 mm under‑leaf clearance across gradients. For solid infills in coastal or high‑wind areas, upsize posts (e.g., to 80×80×3.0 mm) or reduce leaf width, and use three hinges rated ≥120 kg with polymer bushings to reduce wear.

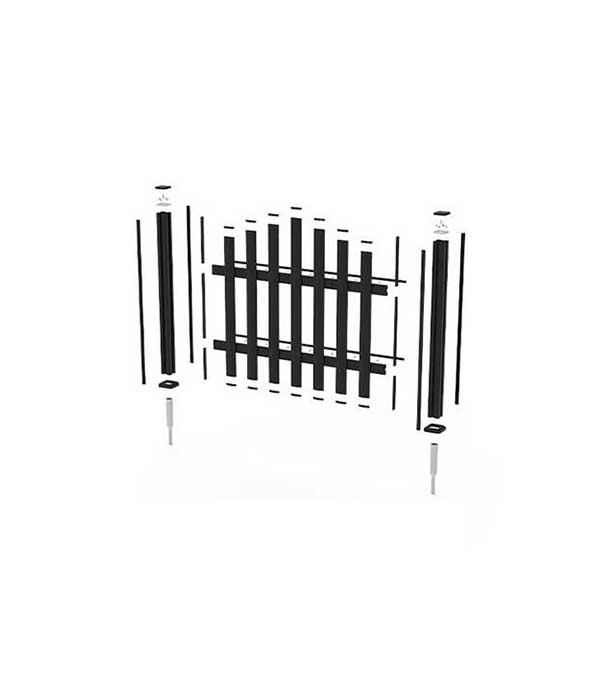

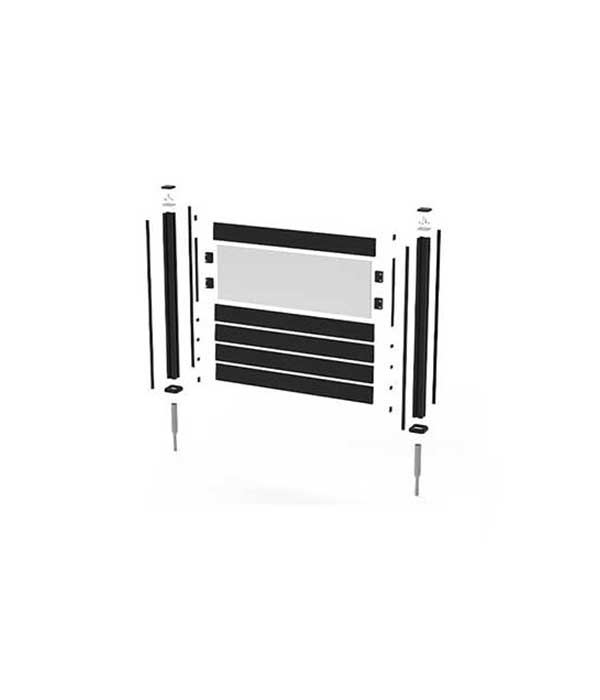

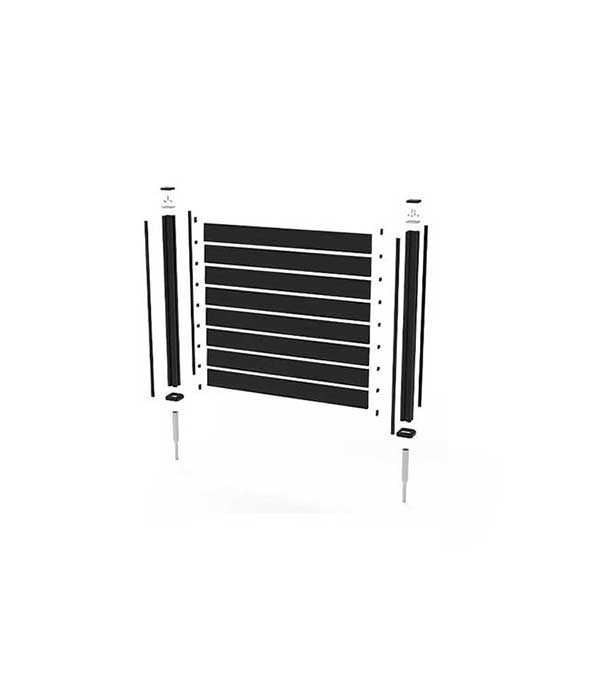

Akos System supplies complete kits for fast, consistent installs: pre‑cut, pre‑drilled profiles; adjustable hinge plates with ±10 mm alignment range; gaskets; fasteners; and illustrated instructions. Two installers typically assemble and hang a gate within 2–3 hours using common tools (torque‑controlled driver, level, SDS drill). Frames include integrated cable paths for keypads or strikes, with grommeted pass‑throughs to avoid chafing. For glass infills, include edge guards during handling and torque‑limit clamp fittings to manufacturer values to prevent point loading.

1. Measure structural opening and verify square/plumb references; mark hinge side.
2. Prepare footings or anchors; set posts to line with temporary bracing and 10–15 mm under‑leaf clearance.
3. Assemble frame on level trestles; fit hinges and latch, then hang and adjust for 2–3 mm uniform gaps.
4. Route and test access control wiring if used; seal grommets and apply corrosion‑inhibiting paste on dissimilar metals.
5. Final torque check, latch alignment, and function test for ≥10 cycles; document handover.

Compliance notes: pool barriers may require self‑closing/self‑latching hardware and minimum heights per local code; automated vehicle gates must meet EN 12453/EN 13241. Our engineering team supports shop drawings, BIM details, and site‑specific wind checks on request, ensuring your aluminium garden gate aligns with regional regulations without over‑specification.

Why source your aluminium garden gate factory‑direct from Akos System

Sourcing your aluminium garden gate factory‑direct from Akos System reduces total cost, lead time, and risk for distributors and contractors. As a vertically integrated manufacturer in Konya, Turkey, we control design, extrusion partnerships, fabrication, finishing, and packaging under ISO 9001:2015. That means consistent tolerances, repeatable colors across batches, and project‑matched engineering. We export to 50+ countries—Germany, the UK, the USA, the UAE, Saudi Arabia, and beyond—with export‑grade packaging, palletized kits, and harmonized HS documentation to streamline customs.

Buyers gain factory‑direct pricing, scalable capacity for large developments, and genuine customization: non‑standard widths and heights, bespoke laser‑cut patterns, reinforced posts for coastal winds, and matched RAL/texture across fencing, balcony railings, and Aludoor Entry/Auto driveway gates. Typical lead times are 2–4 weeks for standard RAL and 4–6 weeks for special finishes or bespoke panels. Warranty options include extended coating guarantees when specified with Qualicoat Class 2 and approved maintenance schedules. For distributors, we offer container or mixed‑pallet programs, private‑label packaging, and spare‑parts stocking to minimize downtime.

Whether you are equipping villas, hospitality landscapes, or mixed‑use commercial properties, Akos System delivers engineered reliability, precise fit, and coordinated aesthetics across the perimeter. Speak with our technical team to benchmark models—Dakota, Nevada, Nice, Arvada, Florida, Leaf, Star, and Sun—against your site constraints and budget, and finalize a specification that ensures every aluminium garden gate installs smoothly and performs for decades.
