Aluminum Privacy Fence Panels Engineered for Strength and Longevity

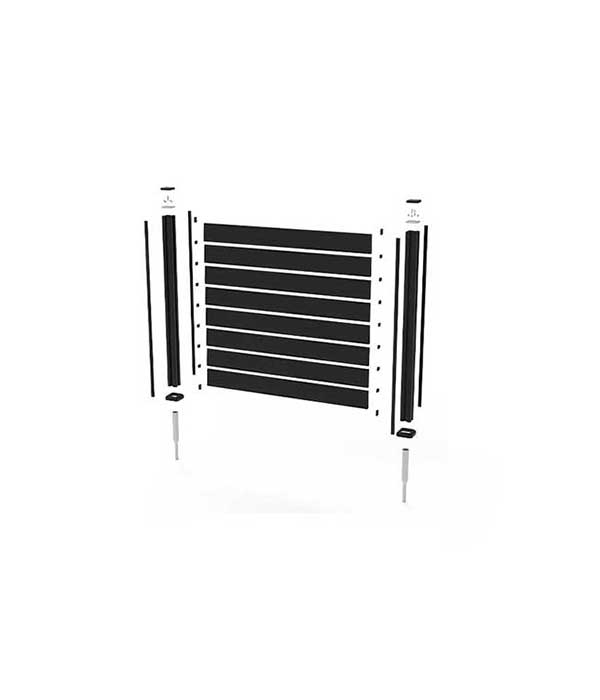

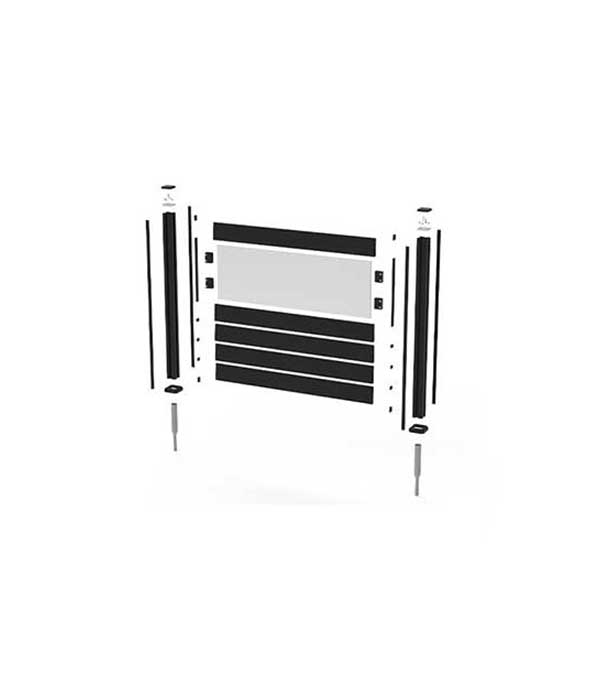

Aluminum privacy fence panels from Akos System are engineered and manufactured with the rigor we apply to façade and railing programs, delivering structural reliability, lasting finishes, and precise fit for demanding site conditions. We extrude architectural-grade 6063 in T5 or T6 temper for slats and posts, with typical slat widths of 90, 120, and 150 mm and wall thicknesses from 1.4 to 2.0 mm; posts are offered in 60×60, 80×80, and 100×100 mm sections with 2.0–3.0 mm walls to suit span and wind zone. Panels assemble mechanically using concealed channels and stainless-steel security fasteners, with EPDM isolation pads and nylon bushings to eliminate rattle and prevent bimetallic contact; no fixings are visible on the public side. Depending on panel height and geometry, clear spans up to 2.4 m are achievable, and we validate designs by finite-element analysis and full-scale rig testing to typical design wind pressures of 0.8–1.2 kPa. Surface durability is secured through a chromium-free conversion pretreatment and polyester powder coating at 60–100 μm dry-film thickness; matte, satin, textured, and wood-effect finishes (oak, teak, walnut) are available across the full RAL palette. Because aluminum does not rust, upkeep is limited to periodic washing with pH-neutral detergent, and profiles are 100% recyclable at end of life. Under our ISO 9001:2015 quality system in Konya, Turkey, we control die design, extrusion aging, CNC cutting, and jigged pre-assembly, holding ±0.5 mm cut-length and ±0.2 mm hole-position tolerances. Export-ready packaging uses foam sleeves, film wrap, and corner protectors, and kit-bundled components arrive labeled by elevation to simplify installation for contractors and distributors.

Design, Privacy, and Performance Options in Aluminum Privacy Fence Panels

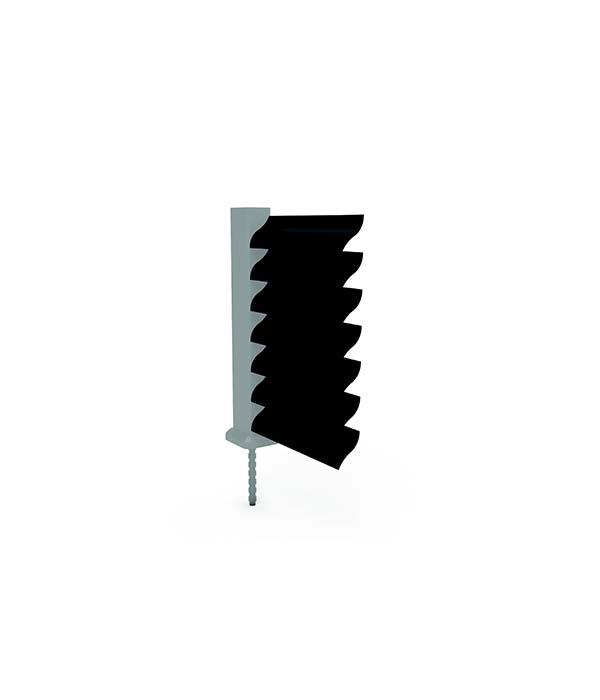

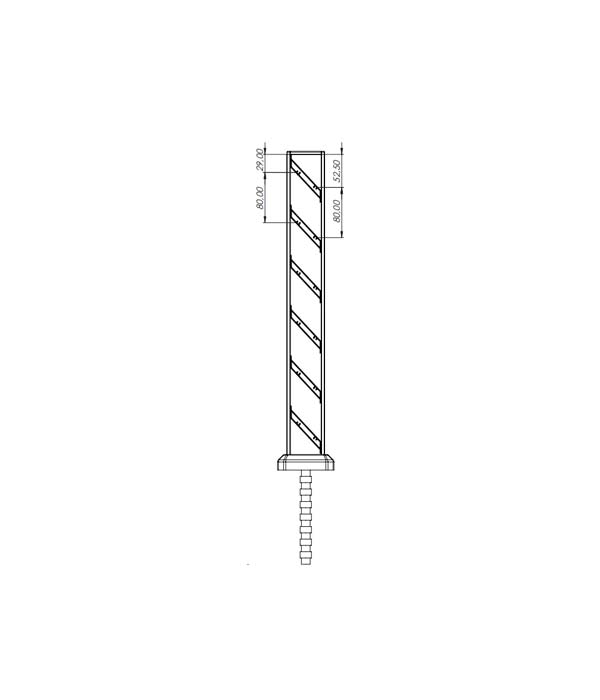

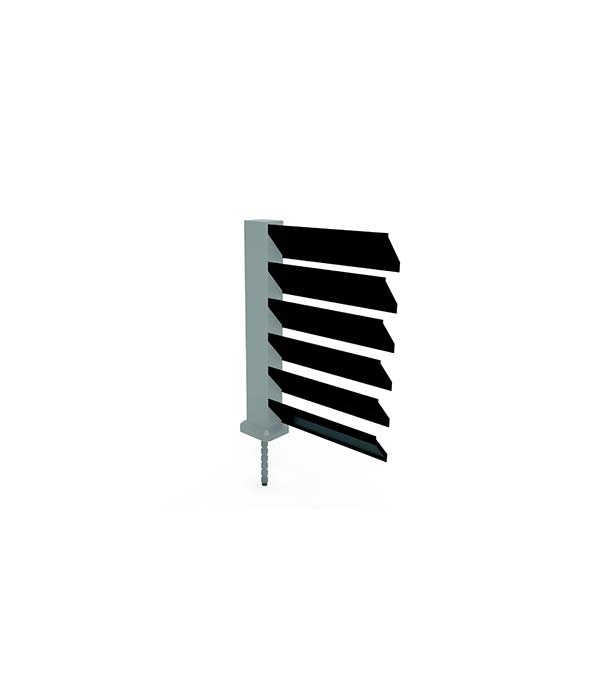

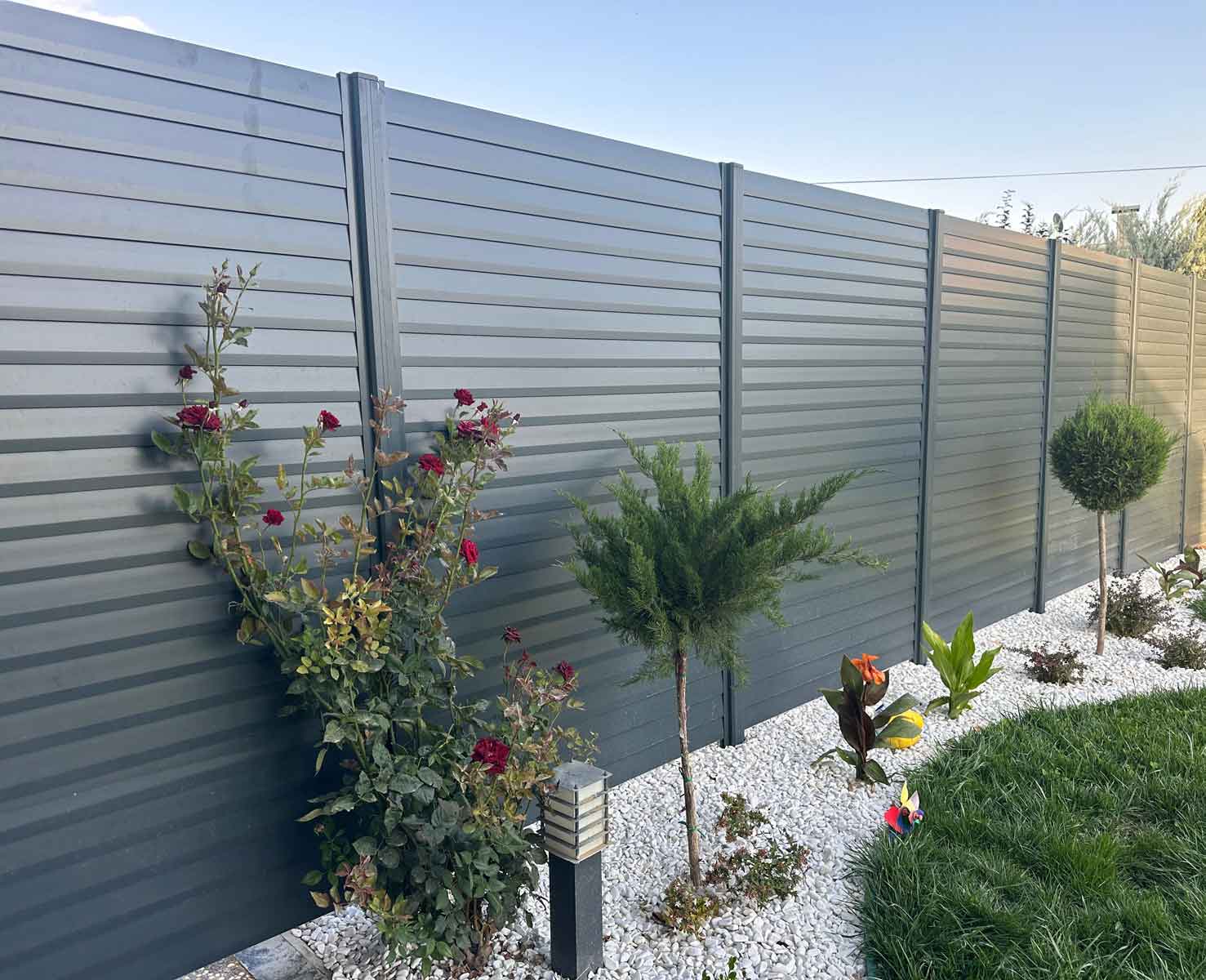

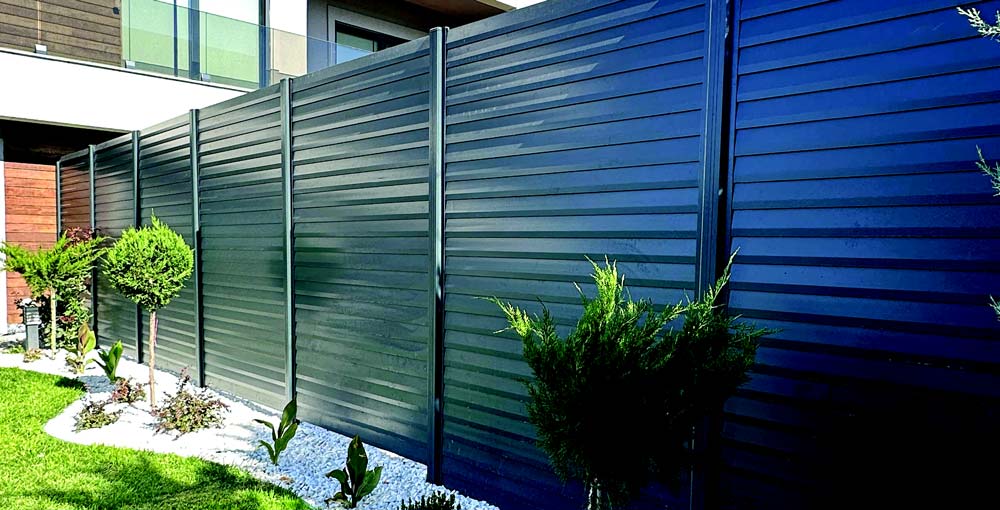

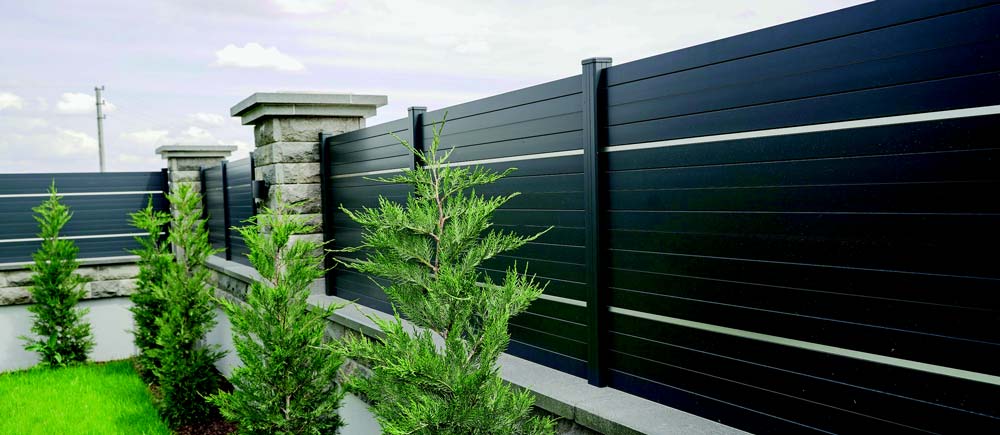

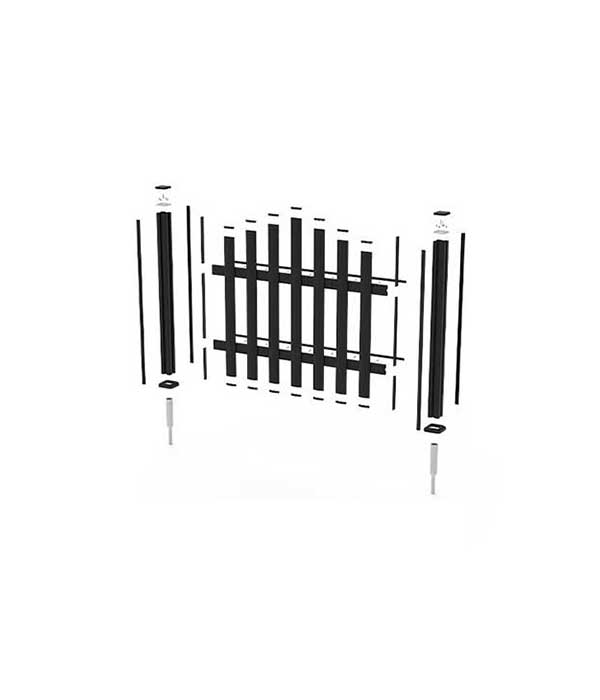

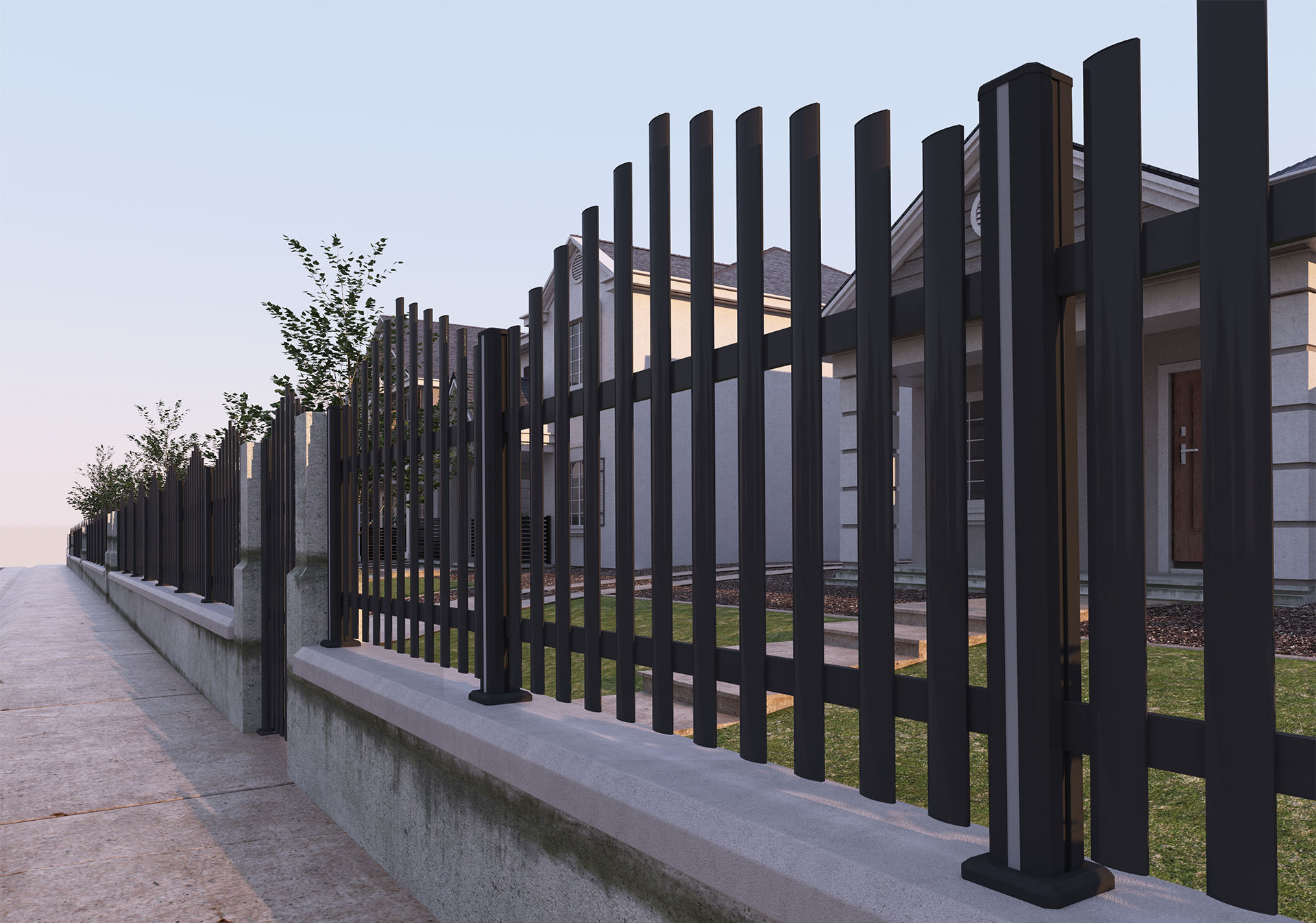

Project teams can tune the visual screening, airflow, and security profile of aluminum privacy fence panels by selecting slat geometry, orientation, and perforation patterns that match site objectives. Zero-vision configurations use deep horizontal boards or Z-slats with 15–20 mm overlap to eliminate sightlines, while semi-private arrays maintain 10–30 mm gaps to admit daylight yet block direct views; vertical assemblies are available for tighter footprints or to echo façade rhythms. Angled louver profiles at 20–45 degrees preserve ventilation on coastal or pool decks without compromising privacy, and micro-perforated or laser-cut screens relieve wind pressure on exposed elevations. Decorative collections such as Leaf, Sun, and Star introduce patterned privacy for hospitality terraces, and linear families like Dakota, Arvada, Nevada, Florida, and Nice offer contemporary ribbing with coordinated caps and trims. Security details include anti-tamper Torx fasteners, concealed bracketry, flush top rails that remove toe-holds, and panel heights from 1.5 to 2.4 m; bottom clearances of 20–50 mm prevent ground contact and allow drainage, or a solid plinth can be specified where debris control is important. For noise-sensitive sites, dense slat arrays typically yield a 3–6 dB insertion loss in near-field conditions, improving comfort along property lines and service yards. We account for thermal movement in long runs with slotted connections and isolator shims, and we recommend A4 (316) fasteners and sealed end-caps for marine districts. Color matching across phases is maintained by batch-coding powders and referencing master RAL standards on our coating line, ensuring consistent appearance on extensions and replacements.

Where Aluminum Privacy Fence Panels Excel: Villas, Commercial Sites, Hospitality, and Landscapes

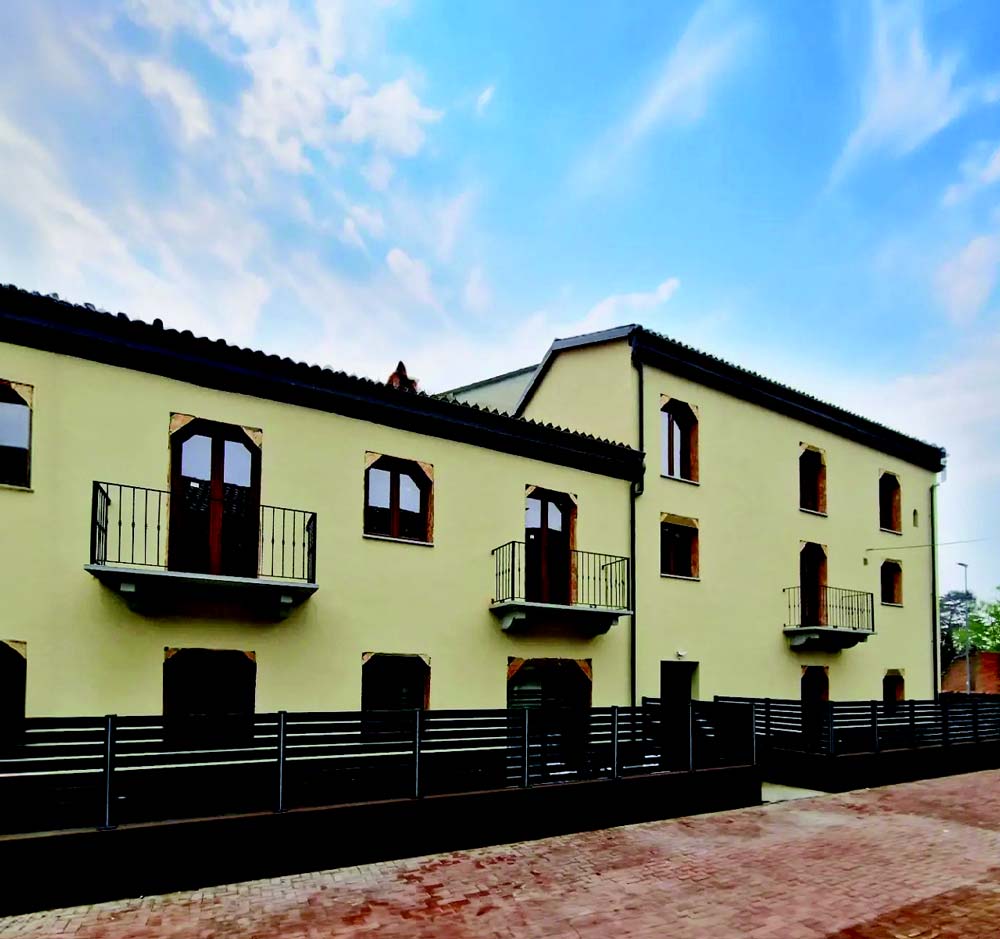

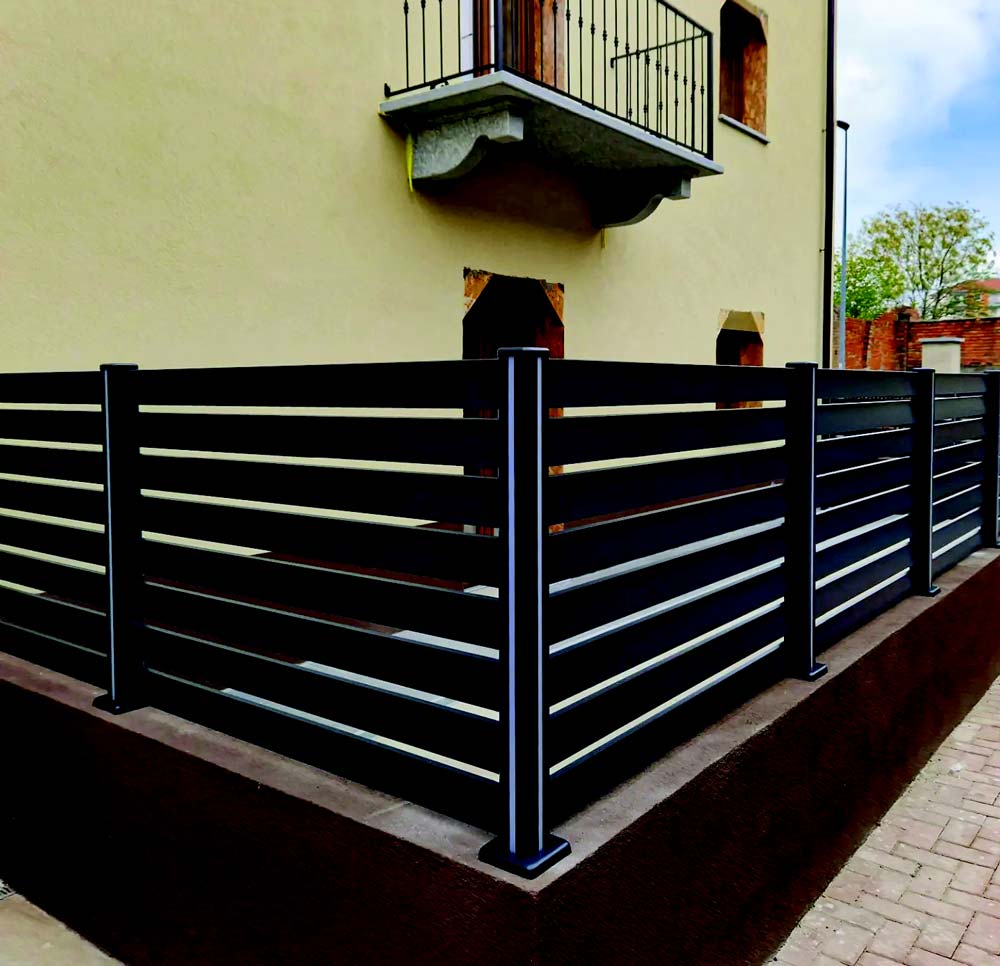

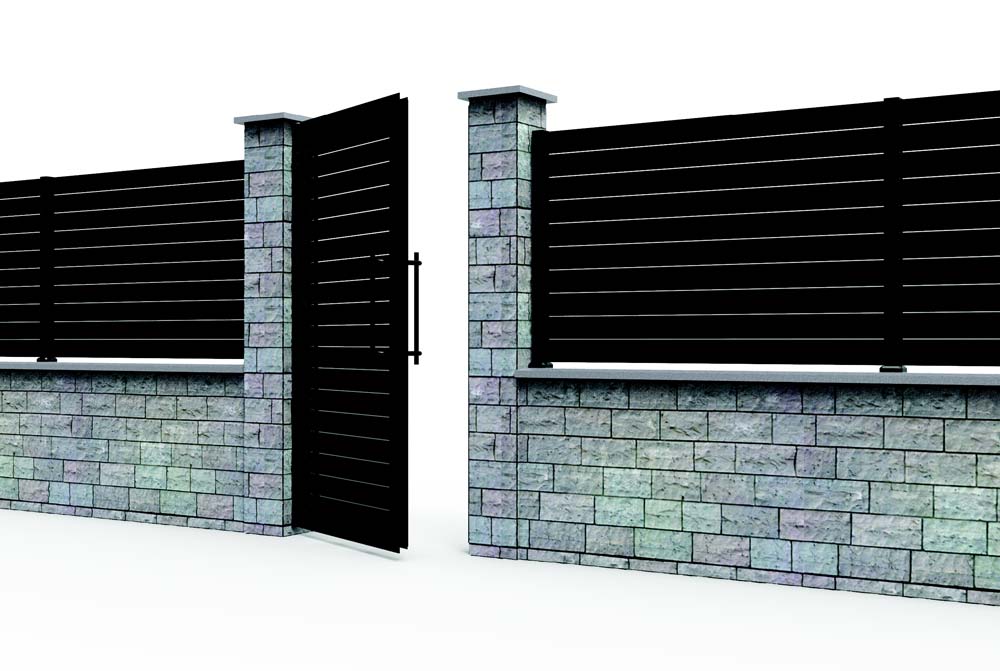

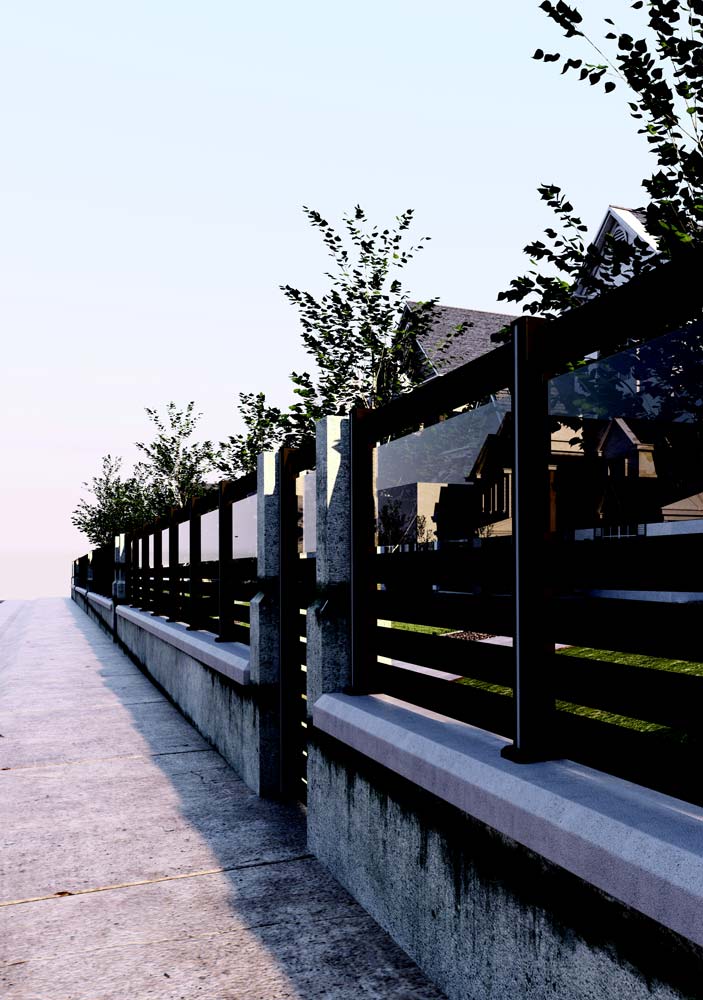

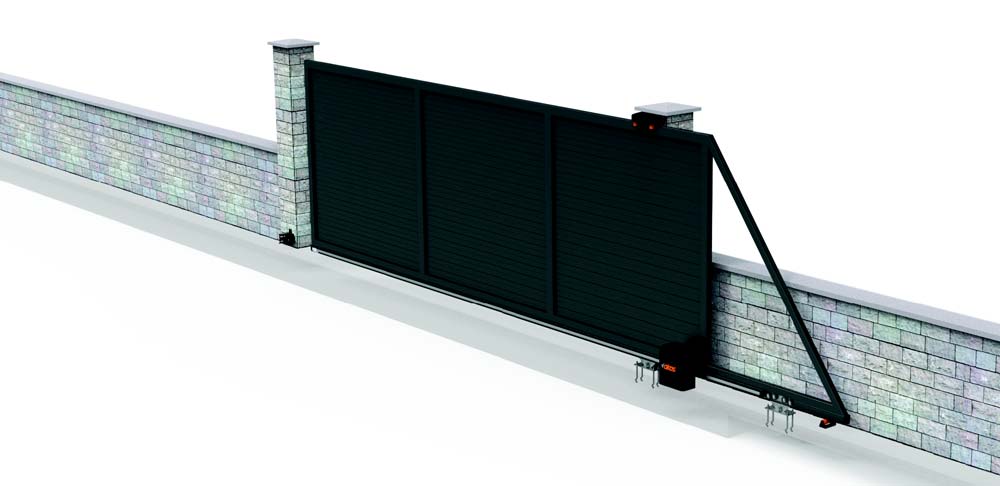

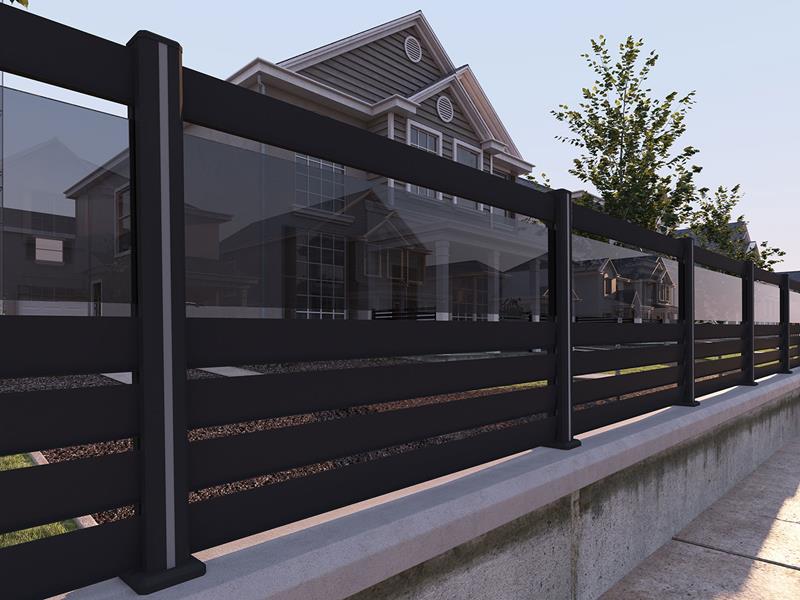

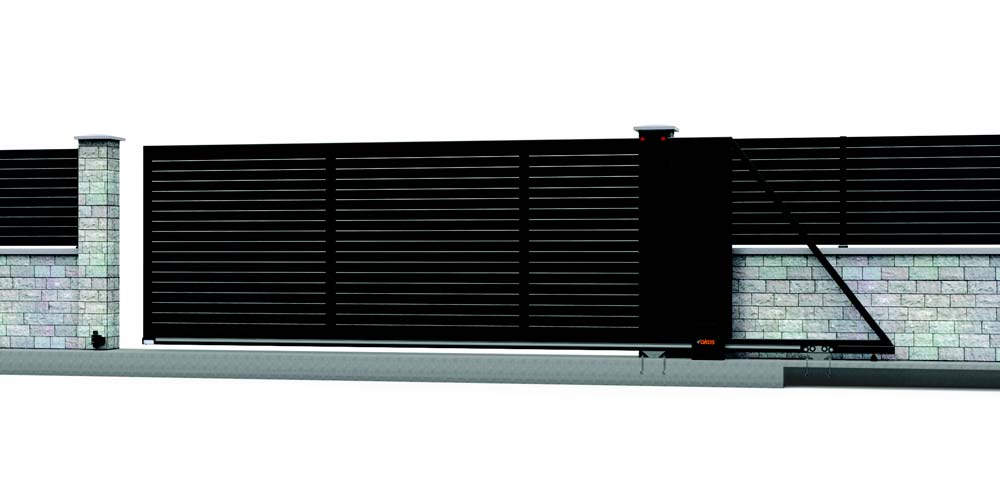

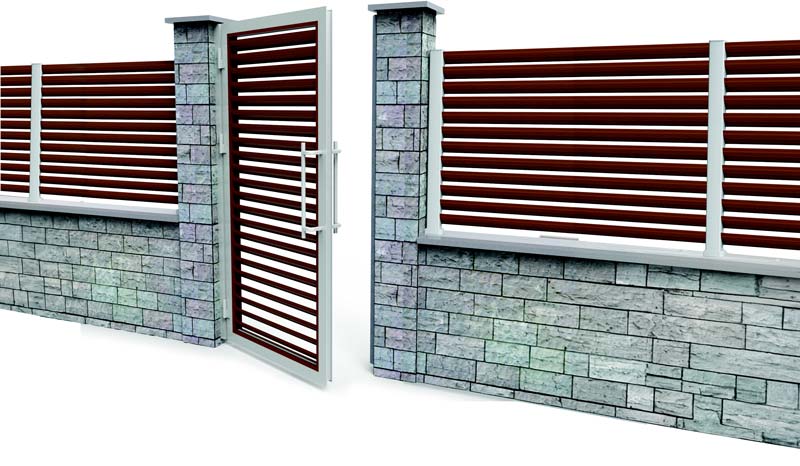

Aluminum privacy fence panels are widely specified across villas, gated communities, commercial campuses, hospitality venues, and municipal landscapes because they pair architectural quality with rapid site assembly. For high-end villas and residential compounds, horizontal slats deliver a modern boundary or courtyard enclosure, and the system aligns with Akos System’s Aludoor Entry pedestrian gates and Aludoor Auto driveway gates to maintain a unified look and hardware ecosystem. In commercial settings—logistics yards, data center perimeters, transformer enclosures, and rooftop mechanical screens—robust 80×80 or 100×100 mm posts at 1.8–2.4 m centers handle exposure while keeping service areas out of sight; equipment screens can be mounted to steel curbs using clamp plates and isolators to avoid roof membrane penetrations. Hospitality projects use semi-private louvers to temper wind around pool decks and terraces without revealing guests, while decorative Leaf, Sun, or Star panels define brandable outdoor rooms. Landscape architects specify stepped or raked assemblies to manage grade changes along paths and property lines, and maintenance teams appreciate that powder-coated aluminum resists humid climates far better than timber. As a manufacturer exporting to more than 50 countries, Akos System supplies pre-engineered kits with CAD setting-out drawings, post schedules, and hardware lists; pallets are forkable, parts are piece-labeled, and cartons include installation guides and touch-up paint. Typical lead times are 3–6 weeks ex-factory plus ocean or air transit depending on destination, and our logistics partners consolidate multi-project containers when distributors require staggered deliveries.

Specifying Aluminum Privacy Fence Panels: Procurement, Quality, and Long-Term Value

Sound procurement of aluminum privacy fence panels begins with a clear specification: target height; required privacy level (zero-vision, semi-private, or louvered with angle); slat profile dimensions and wall thickness; post size, wall thickness, and center spacing; panel span; base condition (concrete footing depth or base-plate thickness and anchor pattern); material grades for fasteners (A2 or A4); and finish parameters including pretreatment and minimum 70 μm polyester powder DFT with named RAL color. For wind design, reference local loading and ask the manufacturer for a project-specific static check showing allowable spans at the governing pressure; Akos System provides section properties and span tables to support bidding and approvals. Quality documentation should include ISO 9001:2015 certification, coating data sheets, and packing manifests linked to lot numbers so distributors can service warranties and spare-parts orders years later. To streamline installation, request factory-kitted deliveries per elevation, slotted base shoes for tolerance take-up, and concealed fastener kits with tamper-proof bits; coordinate gate packages so Aludoor Entry and Aludoor Auto leaves share the same slats, finish, locks, and access control prep. Export buyers benefit from factory-direct pricing, scalable capacity for large tenders, and consolidated shipments from Turkish ports with protective packaging that withstands multi-leg transit. Whether the project is a villa compound, a retail back-of-house screen, or a resort perimeter, well-specified aluminum privacy fence panels deliver durable privacy, coherent design with adjacent systems, and low lifetime maintenance at a predictable installed cost.
