Black Fence Panels: Structural Materials and Load Design

Black Fence Panels engineered by Akos System use 6005A‑T6 posts and 6063‑T66 slats to achieve 1.5 kN/m² ultimate wind resistance. We select 6005A‑T6 for posts and primary rails because its yield strength (~255 MPa) and toughness outperform 6063 at similar wall thicknesses, while 6063‑T66 is ideal for visually refined infill slats and louvers (~190–215 MPa yield) that require precise extrusion detail. Typical post sizes are 60×60×3.0 mm or 70×70×3.0 mm; intermediate rails are commonly 50×25×2.0 mm; and slats range 15–30 mm thick depending on model. Extrusions comply with EN 755 and, when required, ASTM B221, with dimensional controls held to tight tolerances for consistent fit-up.

Welded and mechanically keyed corners stabilize panel frames under cyclic loads. We employ MIG welding with 5356 filler for strength and color-match after coating, and we use concealed corner keys and stainless A2‑70/A4‑80 fasteners to avoid bimetallic corrosion. Connection details—such as slotted stiles, elastomeric isolators, and locking screws—mitigate vibration rattle and allow micro‑adjustment during installation. Akos System privately tools the Dakota, Nevada, Arvada, Sun, Star, Leaf, Nice, and Florida profiles so architects can mix privacy slats, vertical battens, perforated sheets, or selective glass accents inside a common structural envelope.

Panels are verified against serviceability criteria of L/200 deflection at 0.6–0.9 kN/m² service wind pressure, with finite‑element checks for posts at typical 1.8–2.4 m centers and heights from 1.0–2.0 m. Where exposure or topography induces higher pressures per EN 1991‑1‑4, we specify thicker walls, closer posts, or a change from 6063‑T66 to 6005A‑T6 for rails. For crowd‑adjacent edges, optional top rail line‑load checks (e.g., 0.5 kN/m) can be added; for fall protection, use our balcony/guard systems rather than fence assemblies.

Black Fence Panels: Coatings, Pretreatment, and Colorfastness (AAMA 2604/2605)

Akos System specifies AAMA 2604 or AAMA 2605 finishes for Black Fence Panels to ensure gloss, color, and film integrity in harsh climates. Our multi‑stage pretreatment—alkaline clean, deoxidize, non‑chromate conversion, and deionized rinses—prepares the aluminum for uniform powder adhesion. We apply super‑durable polyester powders (AAMA 2604) or 70% PVDF systems (AAMA 2605) at 60–90 μm film thickness, oven‑cured per the powder manufacturer’s profile to ensure cross‑linking and hardness. Color options include RAL 9005 (jet black), RAL 9004 (signal black), and RAL 7021 (black grey) in matte (~30 GU) or satin (~60 GU) for controlled reflectance.

Performance is validated through accelerated humidity and salt‑spray exposure per ISO 9227/ASTM B117, UV weathering, and on‑site Florida/Arizona exposure panels when PVDF is specified. AAMA 2604 suits most residential and commercial sites with excellent color retention; AAMA 2605 is recommended for extreme UV zones or maritime projects due to exceptional chalk and fade resistance. We measure color with spectrophotometers (ΔE targets per the selected AAMA category) and adhesion by ASTM D3359 (5B) on batch samples to maintain finish consistency globally.

Because black surfaces absorb heat, we design Black Fence Panels with thermal movement in mind. Aluminum’s thermal expansion (~23 μm/m·K) is accommodated via slotted brackets, floating infill captures, and EPDM isolation pads that preserve coating integrity under temperature swings. Stainless hardware uses polyamide or EPDM washers to separate dissimilar metals, and drainage/venting holes are engineered to prevent moisture traps that could stress coatings. When required, AAMA 2605 coatings can be paired with C4/C5 site strategies under ISO 12944 for coastal durability.

Black Fence Panels: Manufacturing, Tolerances, and Quality Assurance

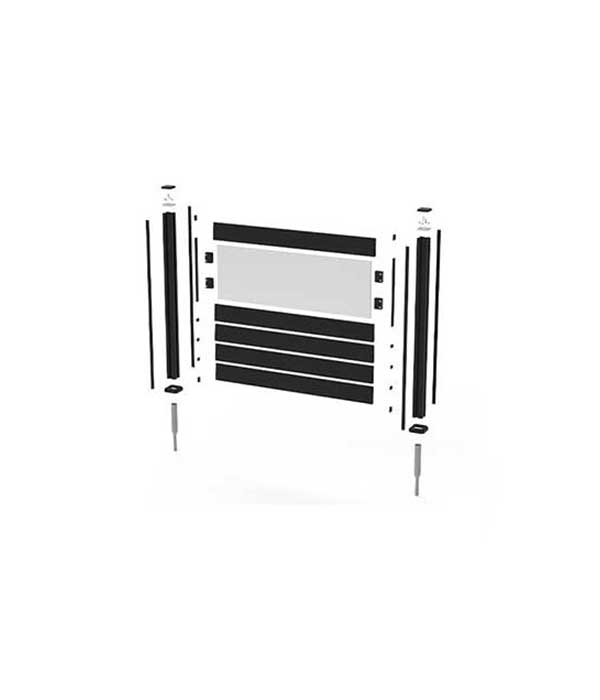

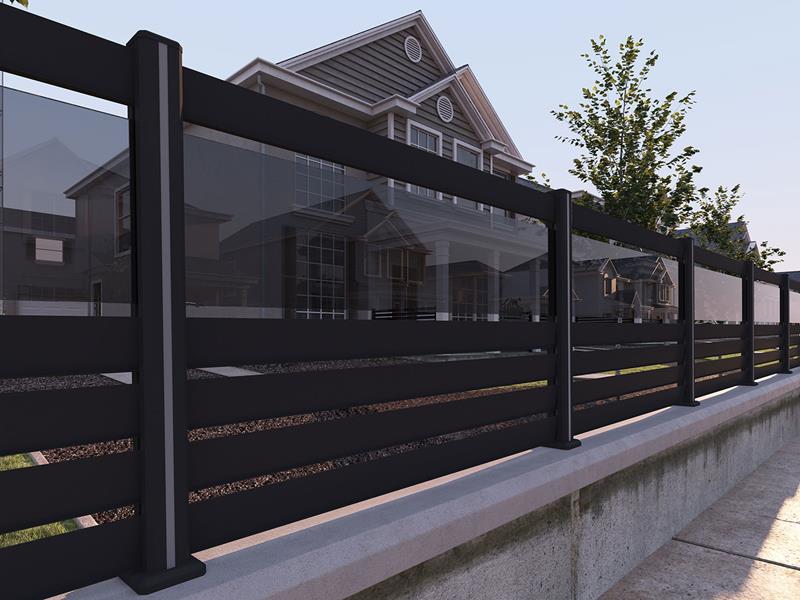

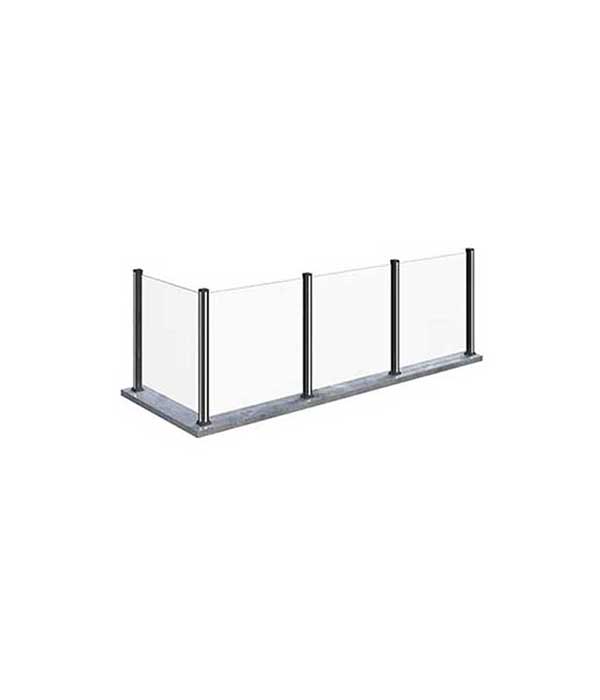

We produce Black Fence Panels in-house under ISO 9001:2015 with CNC-controlled tolerances that speed installation and minimize rework. Extrusions are precision‑cut on double‑mitre saws (±0.5 mm length, ±0.3° angle), punched/milled on CNC cells (±0.2 mm hole location), and dry‑fit in jigs before welding or mechanical locking. Post caps, brackets, and cover trims are robotically deburred for consistent edge quality; all welds are cleaned for invisible seams after coating. For glass‑accent variants (Star), we accommodate 8 mm tempered or 10.76 mm laminated tempered glass using EPDM gaskets tested to EN 12365 for sealing performance.

Quality control spans material certificates (EN 10204 3.1 for alloys), hardness checks after thermal tempering, coating thickness measurements (magnetic gauge), and adhesion/cross‑hatch tests recorded lot‑by‑lot. We inspect assembled panels for squareness (≤1.0 mm/m), bow (≤2.0 mm/m), and surface defects under controlled lighting. Shipments are export‑ready with foam‑in‑bag protection, corner guards, barcoded kitting, and moisture‑barrier wrapping to ensure panels arrive site‑ready from Konya to project sites in Germany, the United States, the UAE, or South Africa.

• Alloys and tempers: 6005A‑T6 posts/rails; 6063‑T66 slats/louvers; optional 6082‑T6 baseplates.
• Wall thickness: posts 3.0 mm; rails 2.0–3.0 mm; slats 1.4–2.0 mm per model.
• Standard spans: 1.8–2.4 m between posts; heights 1.0–2.0 m as typical stocked kits.
• Fasteners: A2‑70 for inland; A4‑80 for coastal; torx-pan with isolating washers.
• Coatings: AAMA 2604 or AAMA 2605; 60–90 μm film; RAL 9005, 9004, 7021 standard.
• Gaskets/seals: UV‑stabilized EPDM; black; shore A per design to limit buzz/rattle.
• Optional infill: perforated aluminum (Leaf), louvered privacy (Arvada/Sun), or glass detail (Star).

Black Fence Panels: Compliance, Testing, and Anchoring Guidance

Design-ready Black Fence Panels are checked against EN 1991‑1‑4 and ASCE 7‑16 wind loads with service deflection criteria and safety factors. For a 1.2 m‑high panel at 2.0 m post spacing, our standard configuration sustains 0.9 kN/m² service and 1.5 kN/m² ultimate pressure with L/200–L/240 deflection. Perimeter security projects can tighten post spacing or add mid‑rails to improve stiffness; landscape schemes can use perforated (Leaf) or louvered (Arvada/Sun) infills to reduce effective wind area while preserving privacy.

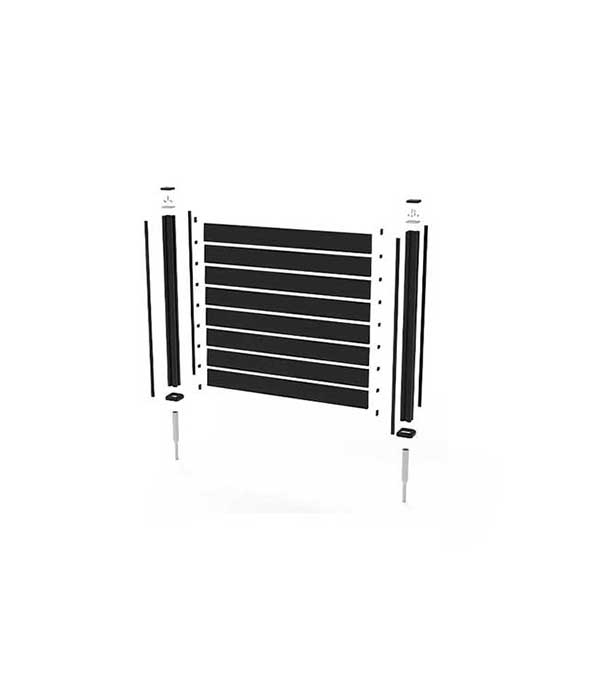

Anchoring is engineered for both base‑plated and in‑ground posts. Typical baseplates are 120×120×10 mm aluminum or steel with four M10–M12 anchors; slots allow ±10 mm leveling, and isolation pads prevent galvanic contact with concrete or steel. For 1.5 kN/m² ultimate design at 2.0 m spacing, post bases commonly attract 3–6 kN tension and 1–2 kN shear depending on height and exposure; we provide anchor schedules, edge‑distance limits, and embedment depths that align with ETA/ICC‑ES anchor data. In‑ground posts are usually embedded 400–600 mm with sulfate‑resistant concrete where soil chemistry requires.

Specification is straightforward: reference alloy/tempers, coating category, load case, and span/height in the drawings and schedule. Where fences border public walkways or potential fall hazards, coordinate scope with guardrail sections—Akos System supplies dedicated balcony/guard systems certified to the relevant line‑load and infill rules, while Black Fence Panels focus on perimeter privacy, screening, and boundary definition. We can issue calculation packages, shop drawings, and method statements; sealed calculations are available through partner engineers in select jurisdictions.

Black Fence Panels: Project Integration, Models, and Procurement

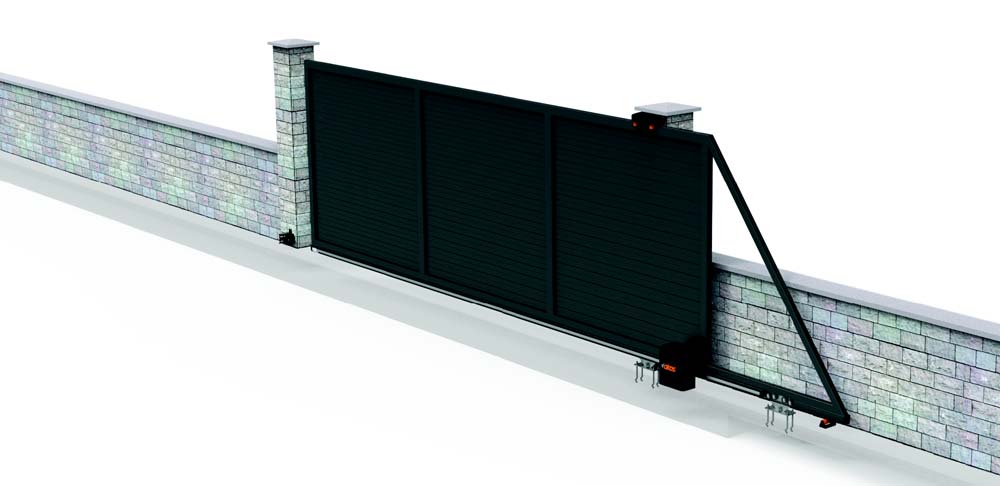

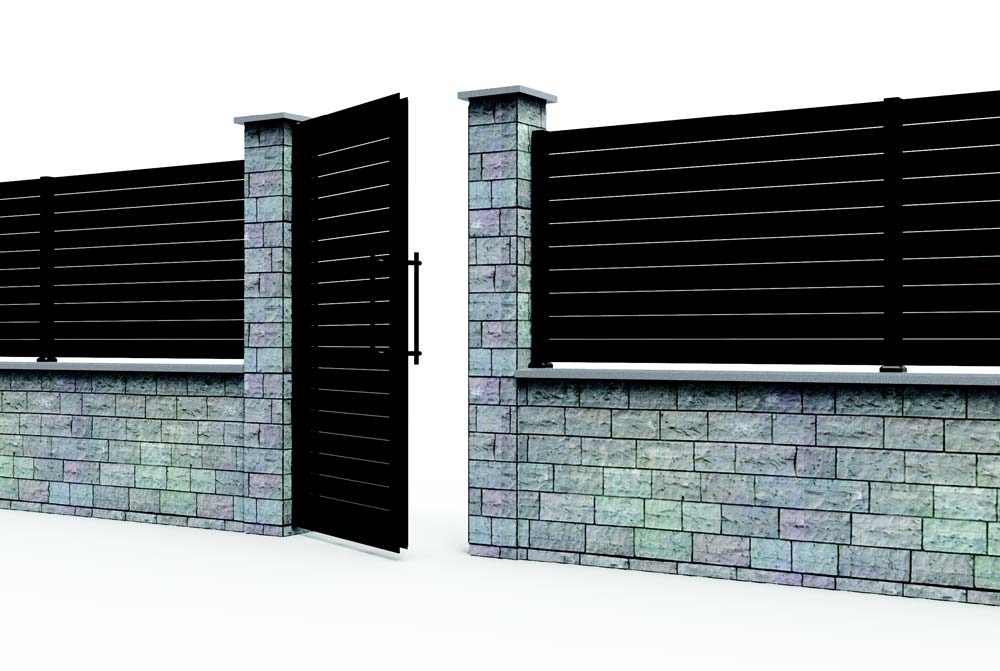

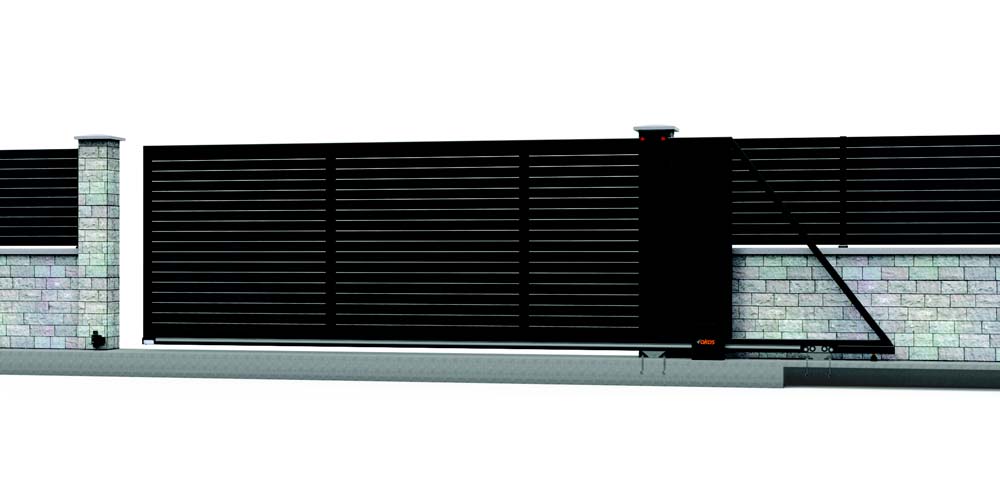

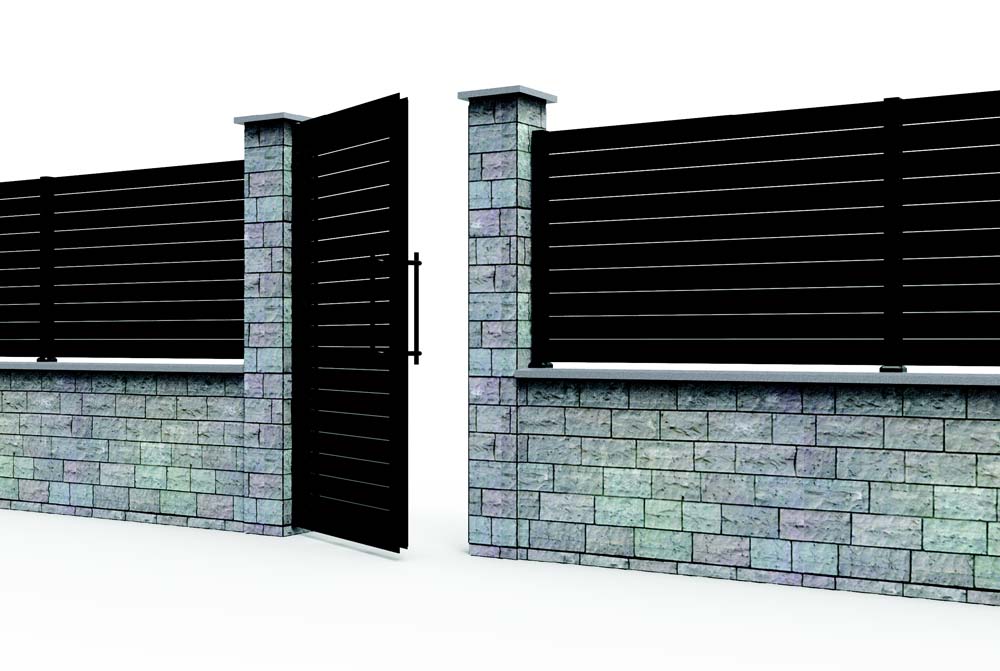

Akos System ships kit-based Black Fence Panels with custom engineering, matching gates, and factory-direct pricing to distributors and contractors in 50+ countries. Systems coordinate with Aludoor Entry and Aludoor Auto for coherent access control, matching RAL blacks and gloss levels across fences and gates. We support DWG/DXF details, BIM blocks, and sample specification text so architects can coordinate post centers with paving joints, light pole bases, and underground services. Lead times typically run 3–6 weeks ex‑works Konya depending on coating queue and volume, with consolidated pallets prepared for Europe, the Middle East, Africa, Asia, and the Americas.

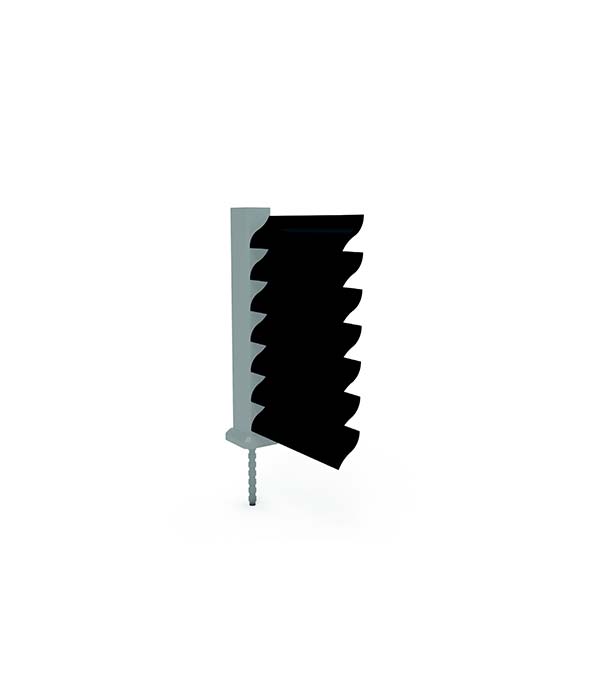

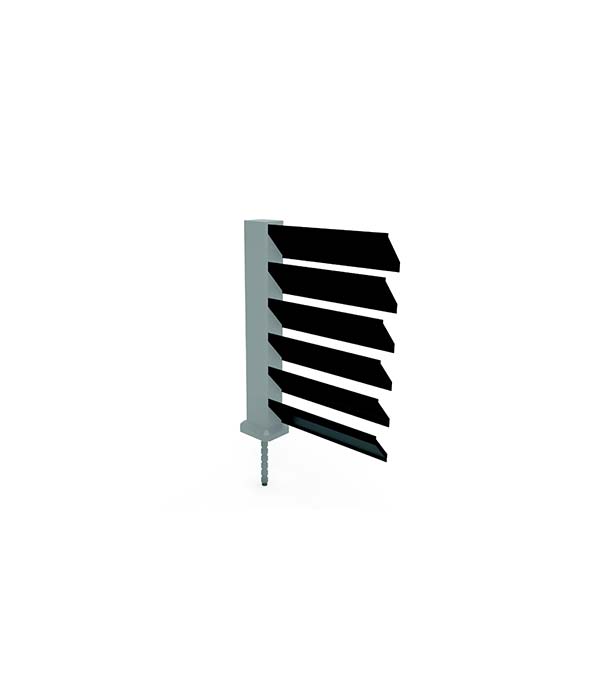

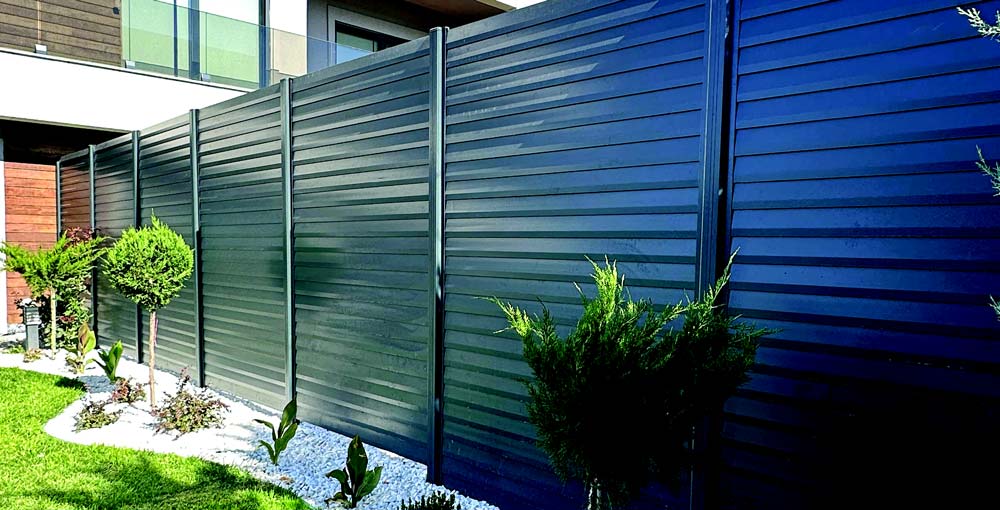

Real projects benefit from style modularity. Villas often choose Dakota or Nevada for full‑privacy slats; hospitality and retail sites favor Arvada or Sun louvers to balance airflow and screening; public landscapes may specify Leaf perforations for wind relief and patterning; premium residences sometimes integrate Star glass details for focal bays. In coastal Florida, matte RAL 9005 with AAMA 2605 is a frequent choice; in Germany and the UK, satin RAL 7021 provides a softer contrast to brick and stone; in the UAE and Saudi Arabia, heavier posts and closer centers address higher wind and exposure categories.

As a vertically integrated manufacturer, Akos System offers factory-direct pricing, ISO‑backed consistency, and scalable capacity for nationwide distributor programs and multi‑site developments. We collaborate early on submittals, mockups, and color swatches, ensuring procurement certainties and predictable installation rates on site. For technical submittals, samples, or a model‑based takeoff, contact our engineering team and reference the target spans, heights, and coating category for your Black Fence Panels.
