Composite Garden Gates
Engineered to Endure

Composite garden gates that eliminate corrosion and weathering risk

Composite garden gates prevent corrosion with 6063-T6 aluminum frames and moisture-proof composite boards. Our frames are engineered from 6063-T6 and 6060-T66 alloys with 2.0–3.0 mm wall thickness, TIG-welded corners, and precision-milled joints to block moisture ingress. We finish every profile with Qualicoat-certified powder coating (Class 1 standard or super-durable Class 2 on request) across the full RAL range, ensuring UV stability and color retention. Infill options use co-extruded WPC/composite slats with UV inhibitors and sealed end caps, so they do not swell, rot, or split. Hinges, fasteners, and strike plates are stainless steel A2 (304) as standard or A4 (316) for coastal sites.

Compared with timber or mild steel, composite garden gates maintain integrity in ISO 12944 C3–C4 environments and pass neutral salt spray testing to 1,000 hours (ISO 9227) when specified with super-durable powder. Drainage weep holes and concealed channels manage water, while EPDM isolation pads prevent galvanic reactions between dissimilar metals. Thermal and hygroscopic movement of composite slats is managed with floating clips and 3–5 mm expansion gaps per meter, protecting frame geometry over seasonal cycles.

As a vertically integrated manufacturer, Akos System controls die design, extrusion, machining, and coating in Konya, Turkey, under ISO 9001:2015. That means material traceability for each batch, consistent anodic pre-treatment before coating, and documented QC on weld penetration and film thickness (typically 70–90 μm). For wind-exposed sites, our standard swing frames and latch sets are engineered for pressures up to 0.85 kN/m² (EN 1991-1-4 guidance), with stronger sections optional for extreme zones.

Composite garden gates that cut maintenance and lifecycle costs

Composite garden gates lower lifecycle costs by eliminating repainting and enabling fast replacement of modular slats and boards. Over five years, distributors and contractors typically see 30–40% lower total cost of ownership versus painted steel or hardwood because there’s no sanding, staining, or corrosion touch-up. Cleaning is limited to neutral detergent and water twice per year, and damaged slats can be swapped individually without removing the frame. Our pre-engineered kits reduce site labor: most pedestrian gates install in 2–3 hours with two installers using common tools.

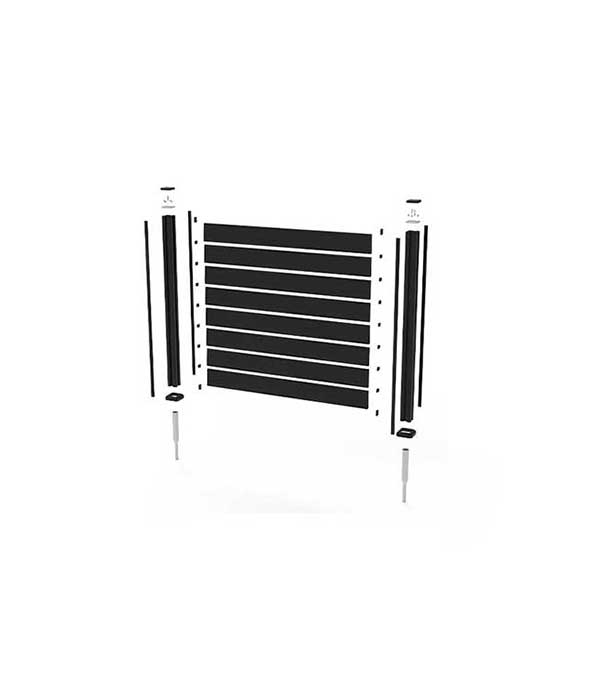

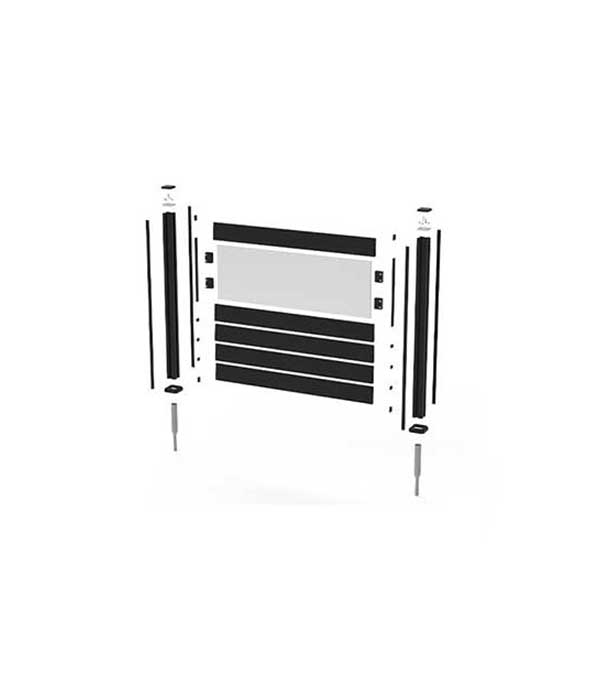

• Pre-assembled, square-true frames (e.g., 60×40×2.5 mm) with factory-mounted hinge plates
• 3D adjustable hinges rated 60–80 kg each; safety pins and tamper covers included
• Stainless steel latch sets with Euro-profile cylinder compatibility and adjustable strike
• Color-matched caps, shims, and fixings packed by opening for rapid on-site sorting
• Optional spare slats and hardware kits for maintenance stock

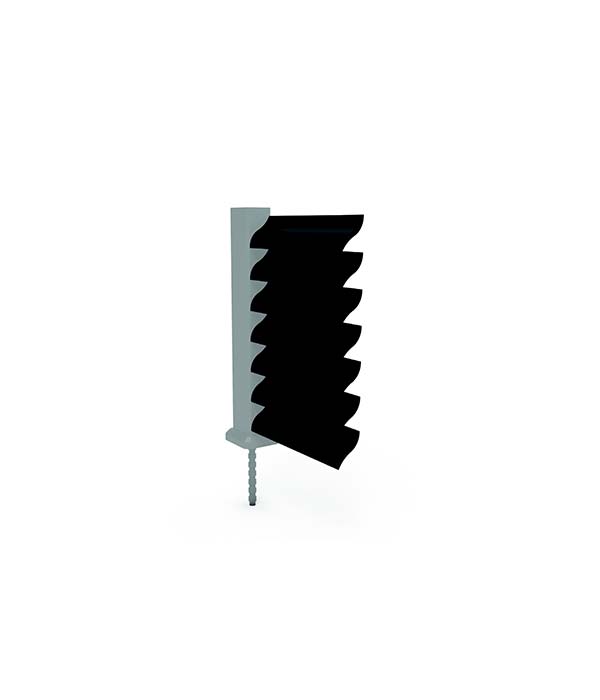

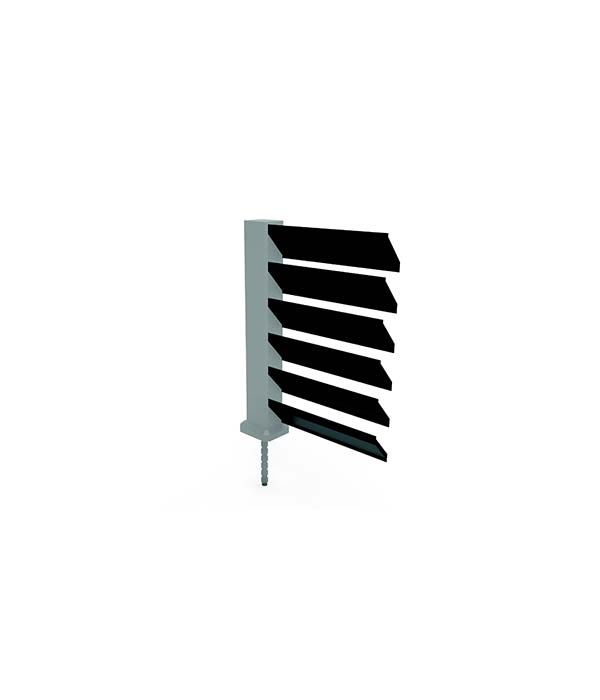

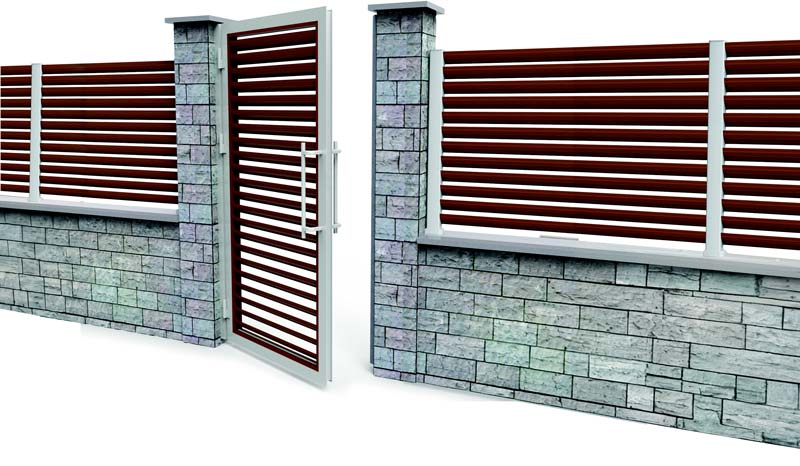

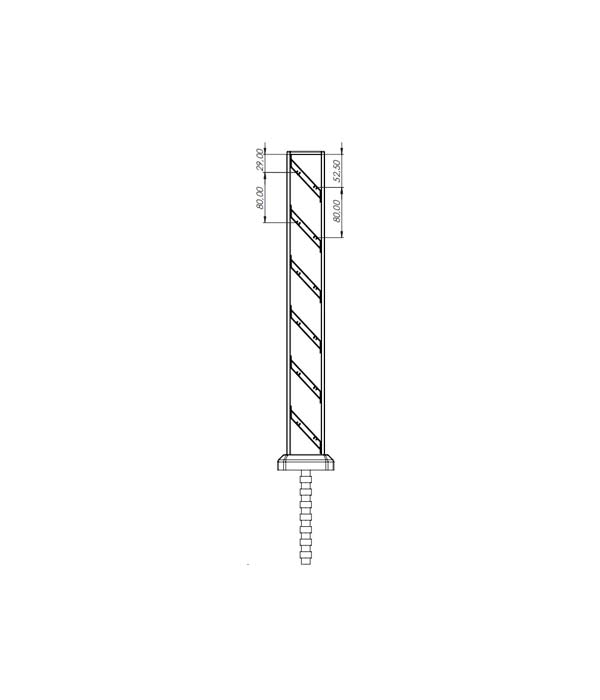

For reliability, hinges and latches are cycle-tested to 50,000 open/close cycles at working loads, and our composite infills use co-extruded capping layers (0.5–0.8 mm) with high-UV stabilizers. Installers appreciate slotted mounting holes that give ±5 mm lateral adjustment and ±3 mm vertical adjustment for final alignment. Where wind loading is a concern, select semi-open louvers (Florida) to reduce panel pressure; where privacy is paramount, full-privacy slats (Nevada) still meet the 0.85 kN/m² recommendation with appropriate post centers.

Composite garden gates for design freedom and project branding

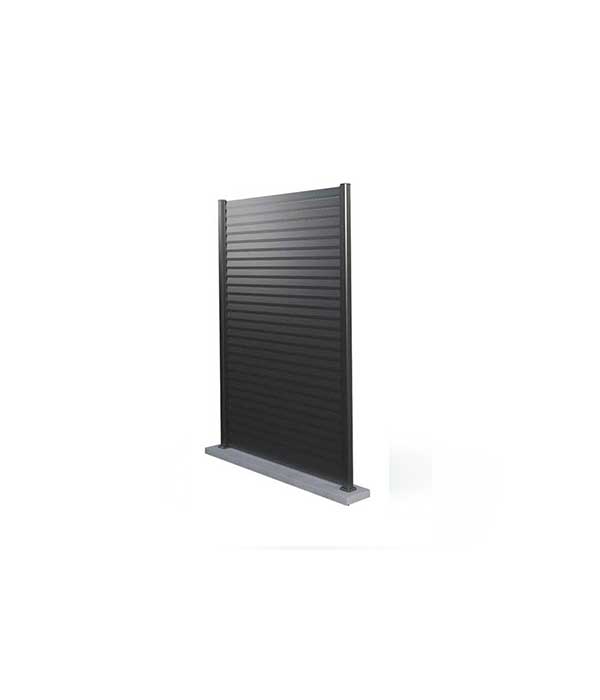

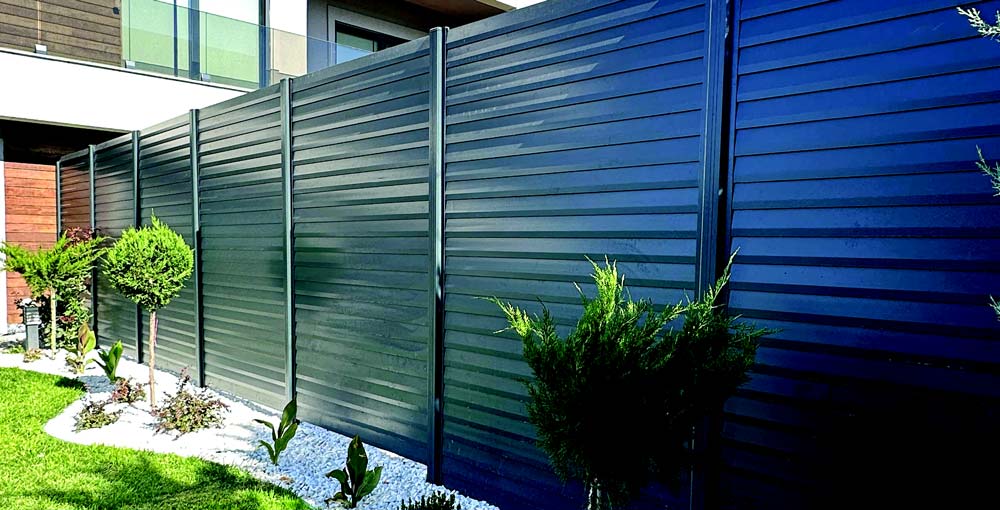

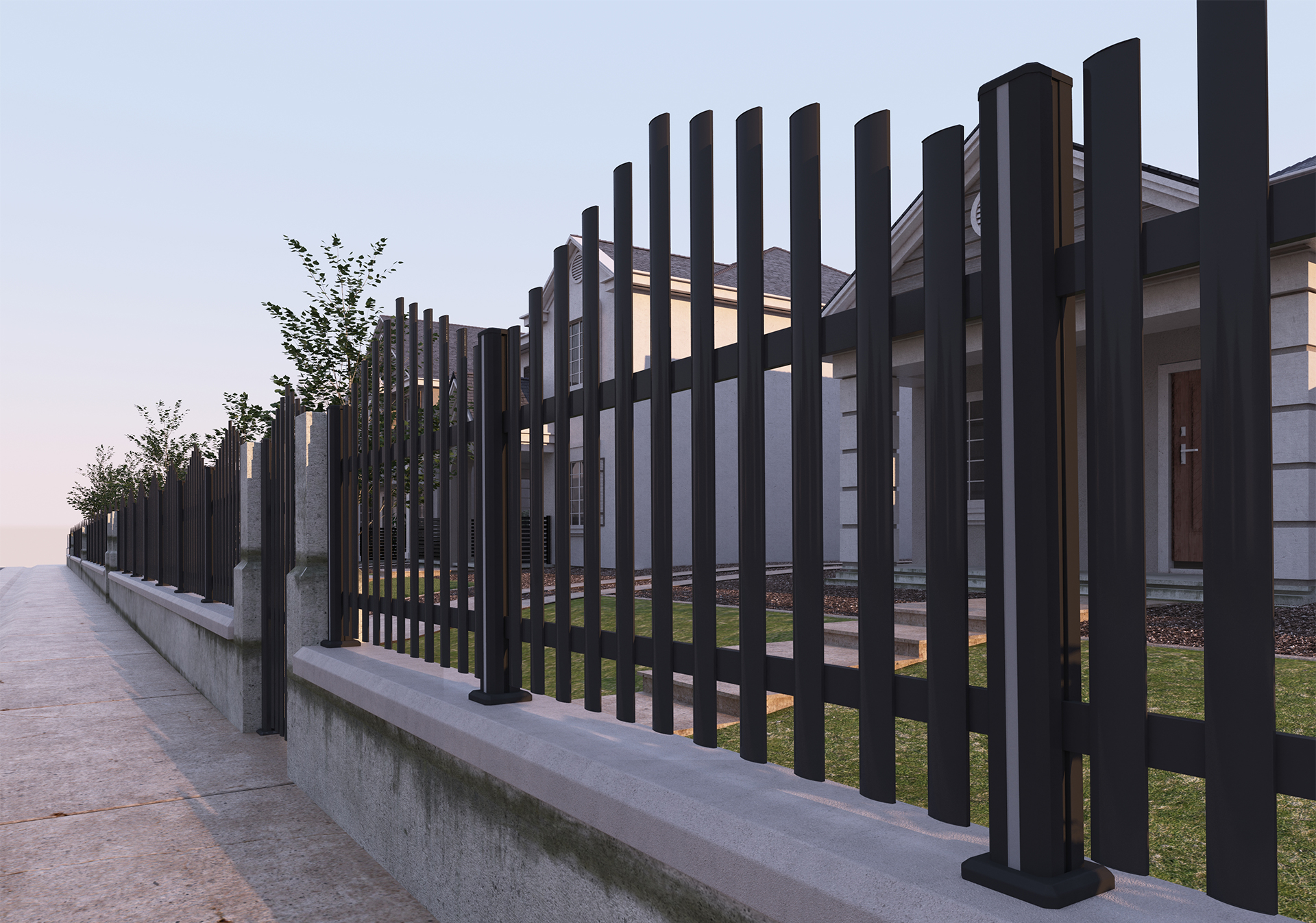

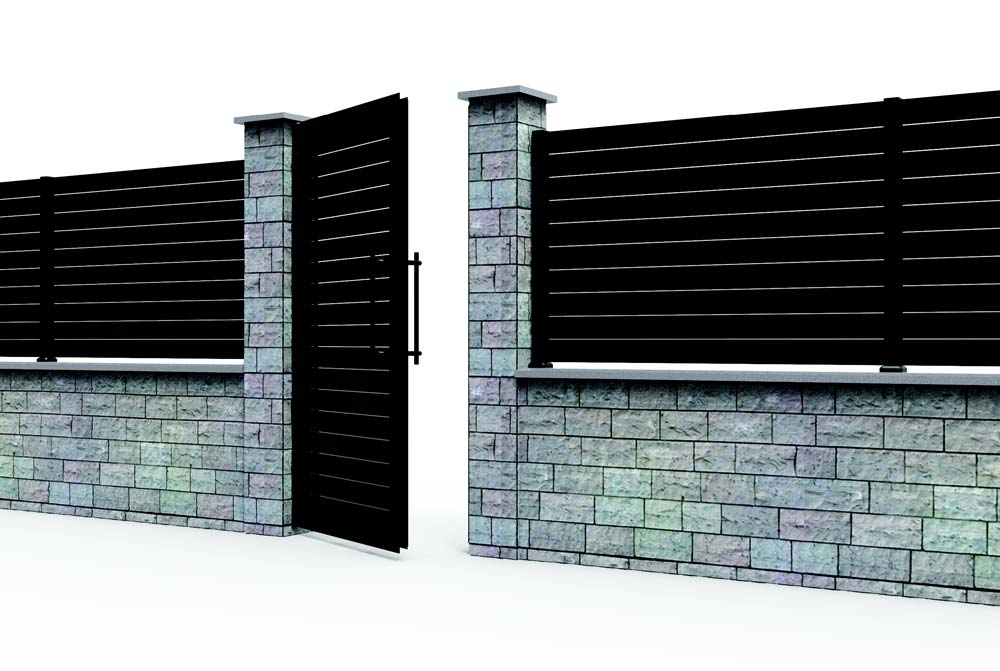

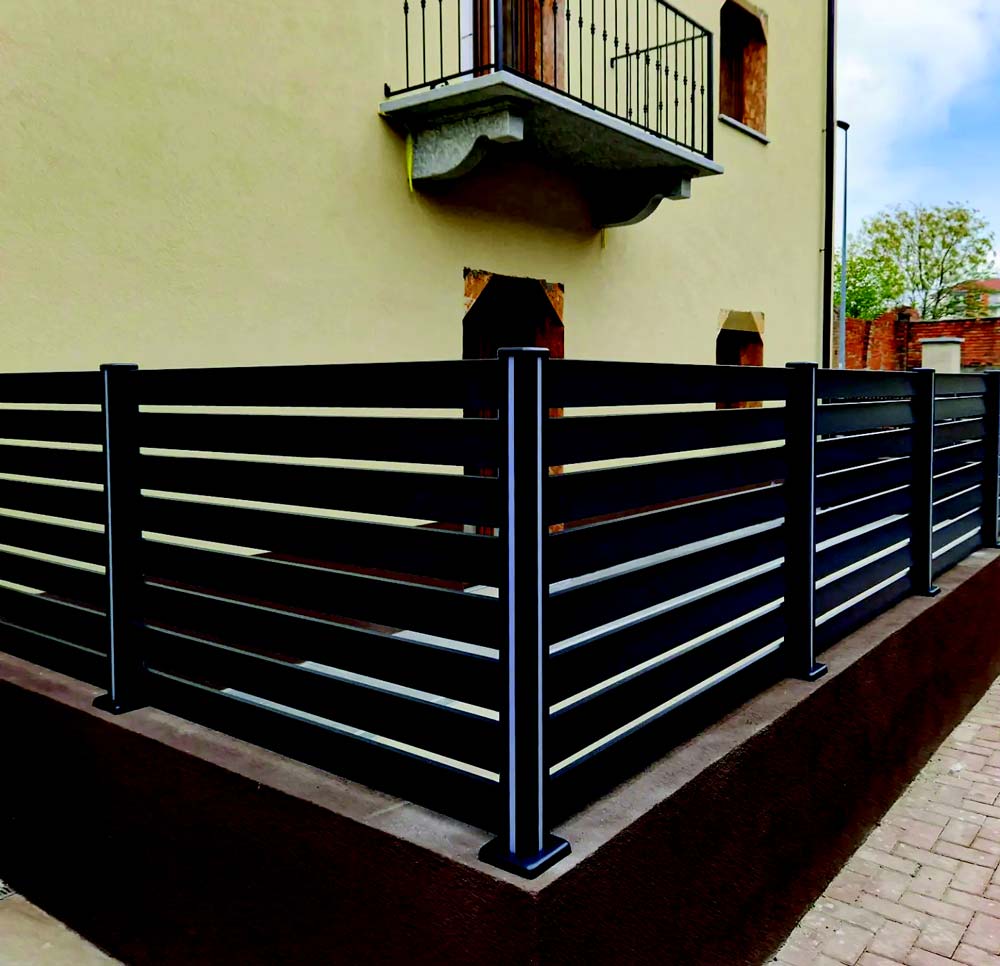

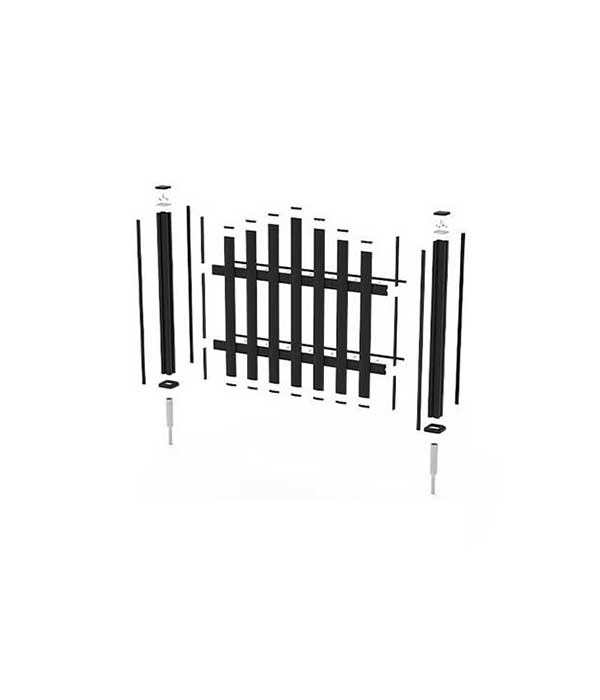

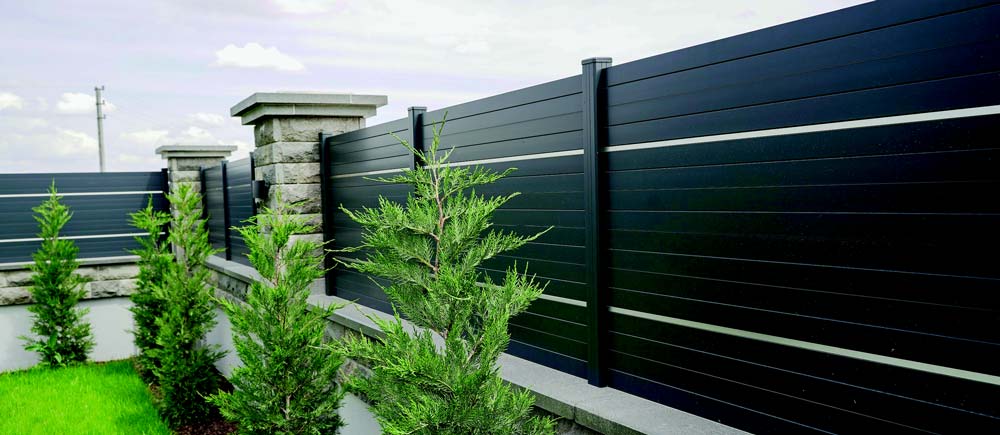

Composite garden gates enable full design control with Akos System models, RAL color matching, and accessories for villas, hospitality, and commercial entrances. Our design families align with perimeter fencing for cohesive lines: Dakota (horizontal slats with tight joints), Arvada (vertical rhythm boards), Nevada (solid privacy), Florida (aero louvers), Nice (mixed-width slats), Sun (sunburst perforations), Star (geometric motifs), and Leaf (organic pattern accents). Frames can be powder coated in RAL 7016 Anthracite, RAL 9005 Jet Black, RAL 7035 Light Grey, or wood-effect finishes, while composite boards are specified in teak, walnut, basalt grey, and charcoal to match regional palettes from Germany to the UAE.

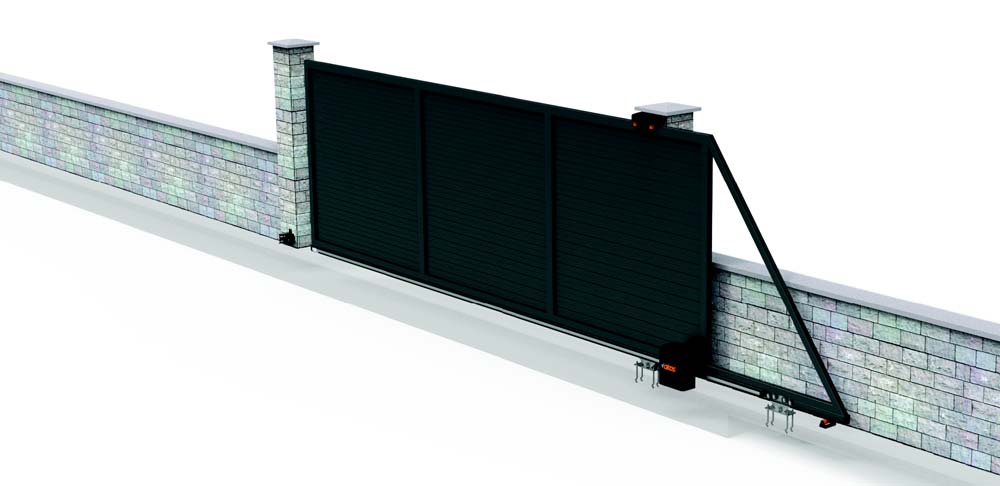

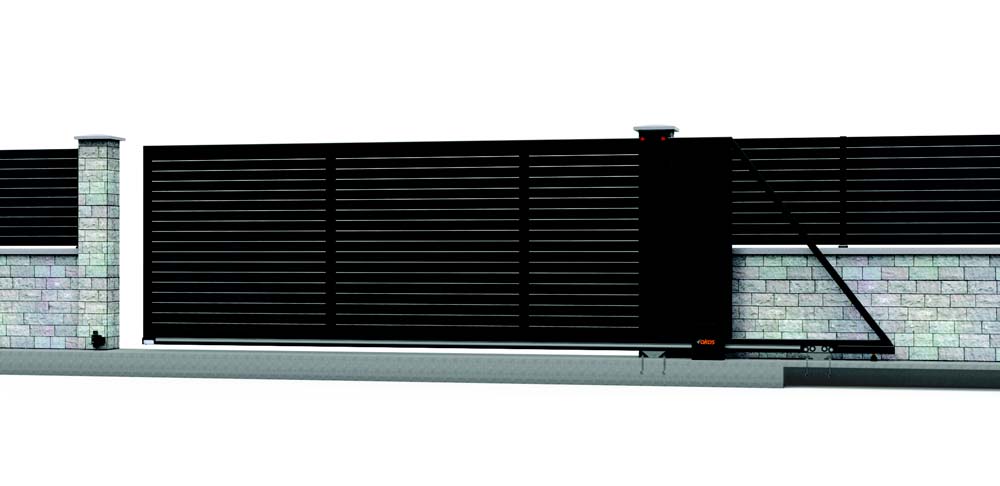

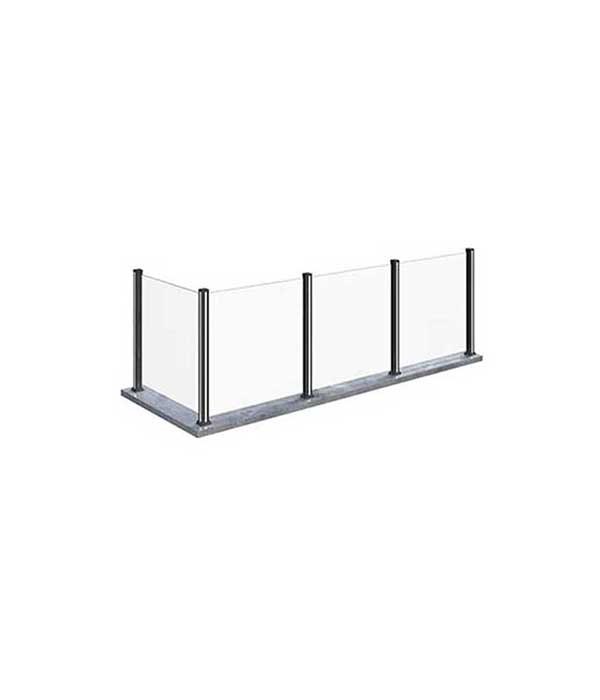

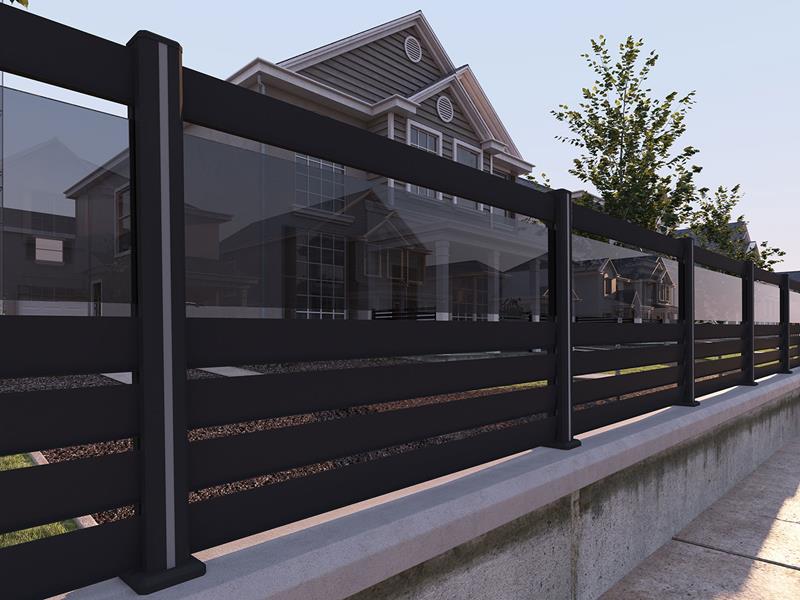

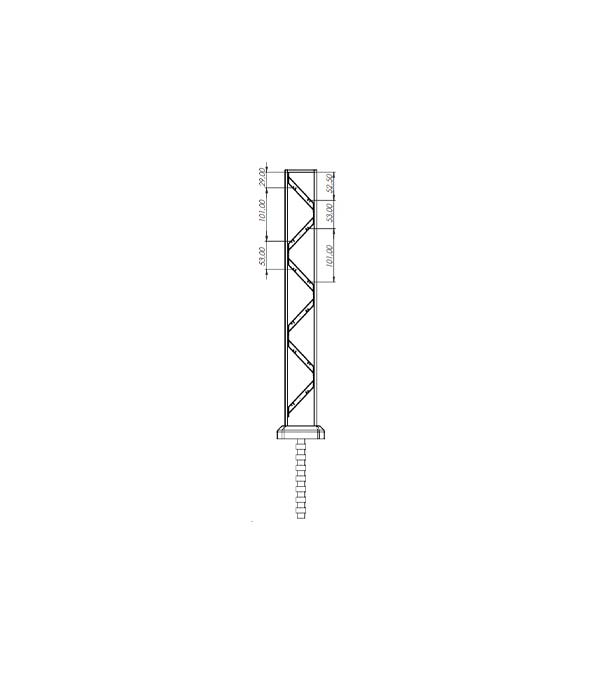

Typical pedestrian gates span 900–1,200 mm wide and 1,200–2,000 mm high; double-leaf drive entries reach 3,000–4,000 mm clear openings with reinforced mid-rails. Frame modules accept 20–25 mm composite boards, 8–10 mm tempered glass accents, or mixed infills for branding. Security options include a 3-point lock, soft-close hydraulic hinges, and access control prep for intercoms. For unified facades, pair gates with Aludoor Entry front doors and coordinate automated driveway solutions using Aludoor Auto operators. Architects receive DWG/DXF shop drawings, section details, and anchoring guidance for concrete, steel, or masonry substrates, supporting villas, resorts, schools, and retail parks.

Composite garden gates supported by reliable, factory-direct supply

Composite garden gates are delivered reliably by Akos System under ISO 9001:2015 with factory-direct pricing and logistics to 50+ countries. As a vertically integrated producer, we manage extrusion, CNC fabrication, pre-assembly, and powder coating in-house, giving you short, predictable lead times and consistent finish quality. Standard programs ship in 3–5 weeks; custom colors or models typically require 5–7 weeks. We support EXW Konya, FOB Mersin, CIF major ports, and DDP on request, with export documents and HS codes prepared for smooth customs clearance across Europe, the USA, the Middle East, and Africa.

Every shipment is kitted by opening, barcoded, and protected in foam-lined cartons with corner guards; pallets use shrink-wrap and edge protectors to minimize transit damage. Our engineering team validates post centers, hinge orientation, and latch handing before production, then conducts final QC on powder film thickness, color delta (ΔE), and hole positions. Because you work directly with the factory, you can request non-standard heights, mixed loads of gates and fence panels, or private-label packaging without middleman delays—while benefiting from factory-direct pricing and scalable capacity for large developments.

Akos System designs composite solutions that coordinate with perimeter fencing and balcony lines, ensuring line-of-sight harmony from entry to garden. Whether you specify Dakota privacy at a villa in Spain, Florida louvers for a hotel in the UAE, or Leaf accents for a landscape project in South Africa, you receive consistent hardware, color, and documentation from one source. Speak with our project team to standardize composite garden gates across your portfolio and secure predictable quality, cost, and lead times at scale.
